Floor Shift Assembly: Removal

REMOVE CONSOLE BOX REAR COVER
REMOVE CONSOLE BOX CARPET
REMOVE REAR CONSOLE BOX ASSEMBLY
1. Using a screwdriver, detach the 8 claws and remove the rear console box cover.

  Fig 1: Removing Console Box Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Tape the screwdriver tip before use.
2. Remove the console box carpet.
3. Remove the screw.
4. Disconnect the connector.
5. Using a screwdriver, detach the 2 clips and remove the console box.

  Fig 2: Removing Clips And Console Box
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT FLOOR SHIFT PARKING LOCK CABLE ASSEMBLY
1. Rotate the adjust lock cap clockwise 90° so that it faces the front of the vehicle, and release it.
2. Push the claw and disconnect the floor shift parking lock cable from the shift lock release link.

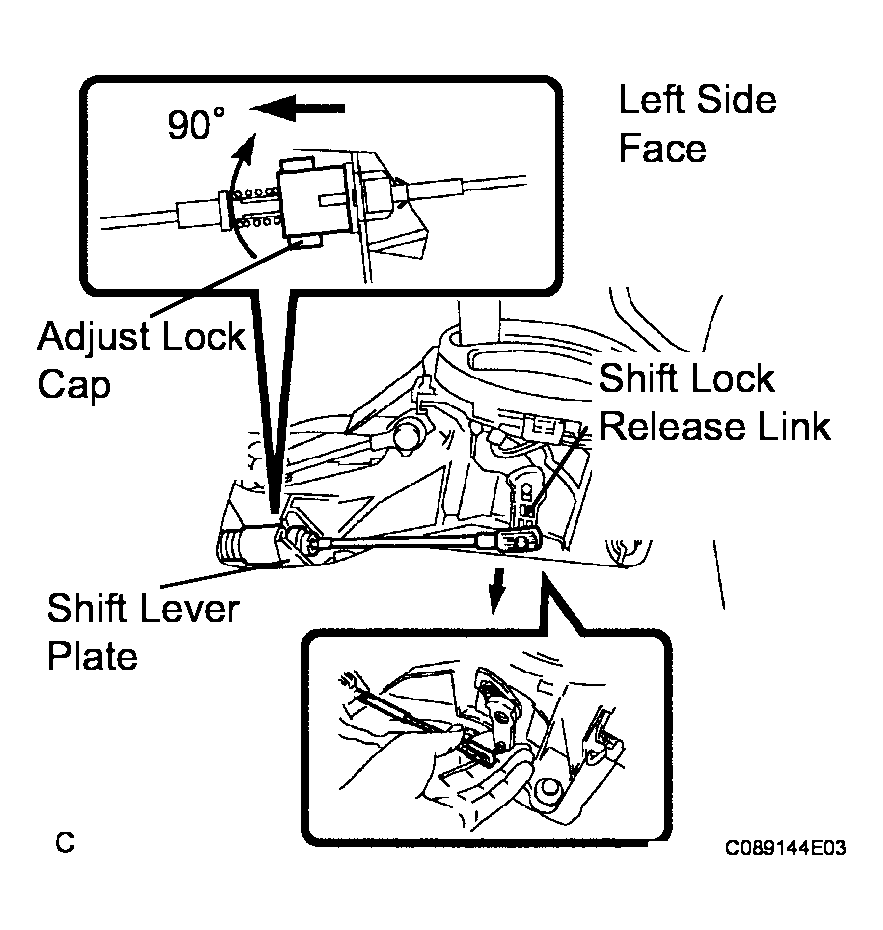

  Fig 3: Pushing Claw And Disconnecting Floor Shift Parking Lock Cable From Shift Lock Release Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, disconnect the floor shift parking lock cable from the shift lever plate.

  Fig 4: Disconnecting Floor Shift Parking Lock Cable From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
1. Remove the nut, and disconnect the transmission control cable from the floor shift.
2. Using a screwdriver, disconnect the transmission control cable from the shift lever plate.

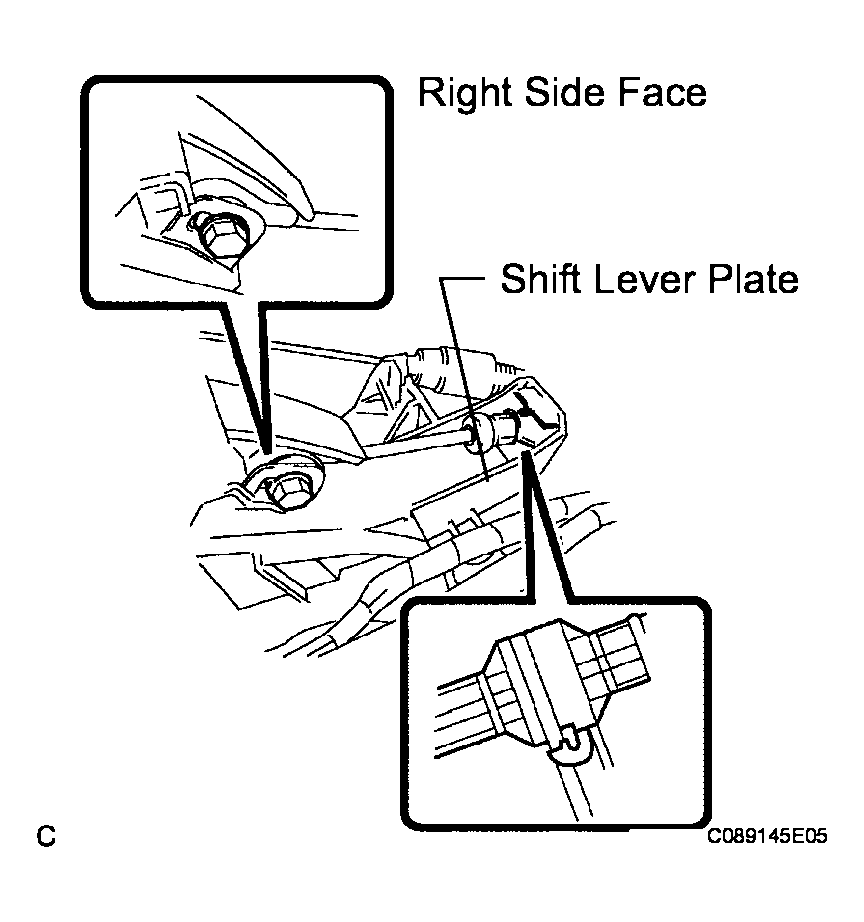

  Fig 5: Removing Nut, And Disconnecting Transmission Control Cable From Floor Shift
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FLOOR SHIFT ASSEMBLY
1. Disconnect the 2 connectors.
2. Remove the 2 wire harness clamps from the floor shift.
3. Remove the 4 bolts and floor shift.

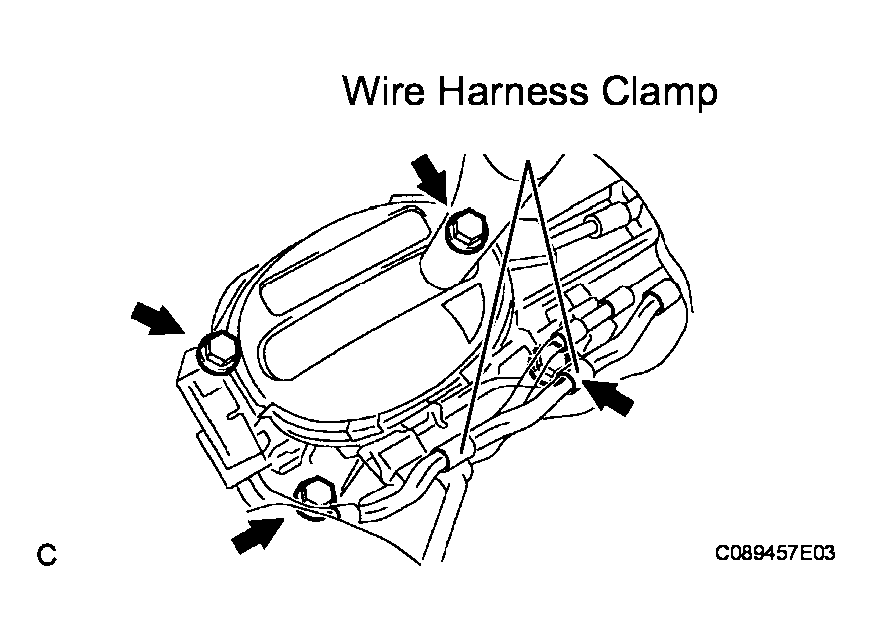

  Fig 6: Removing Bolts And Floor Shift
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
