Intermediate Shaft: Components

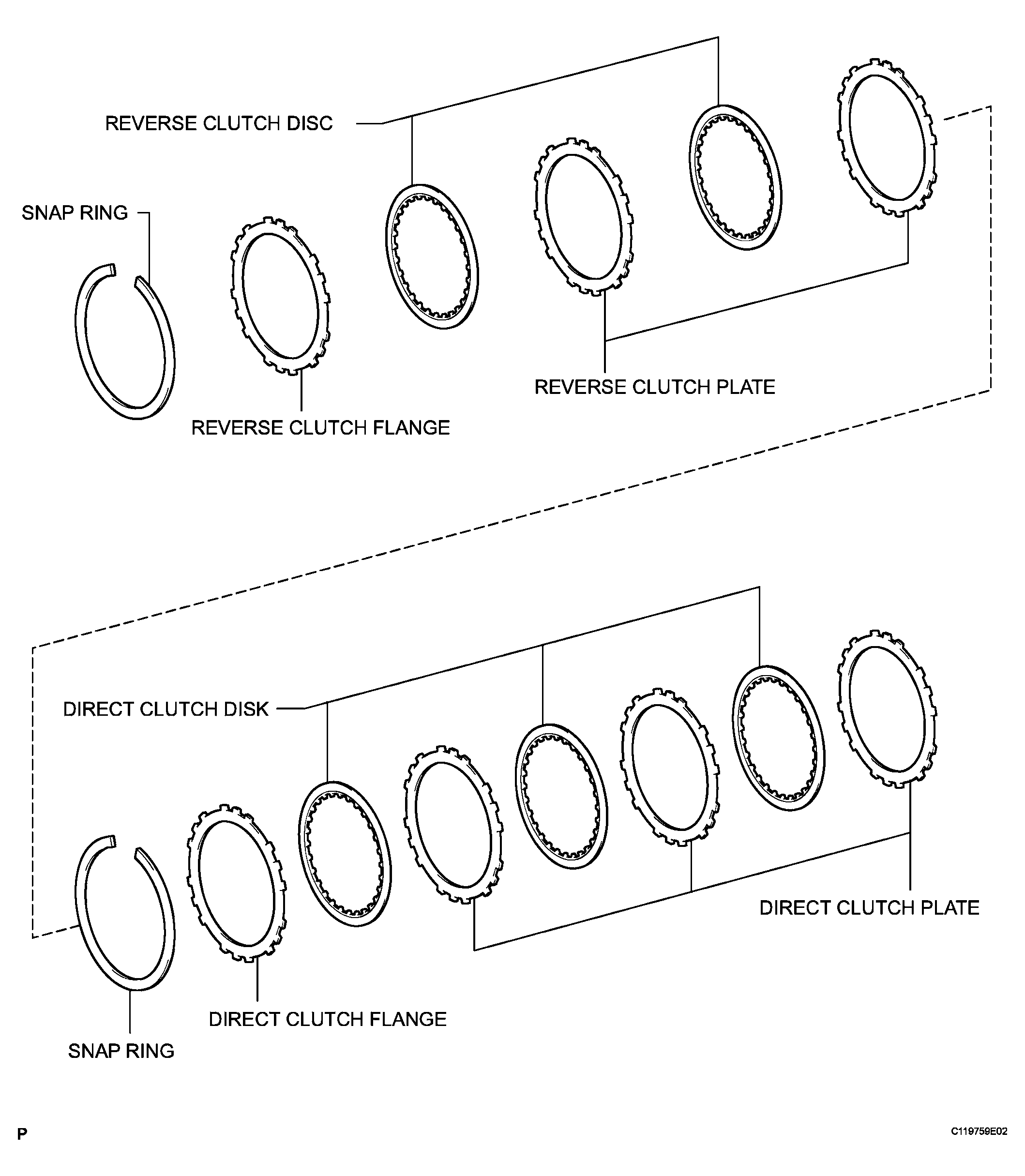

Fig 1: Identifying Clutch Disc Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

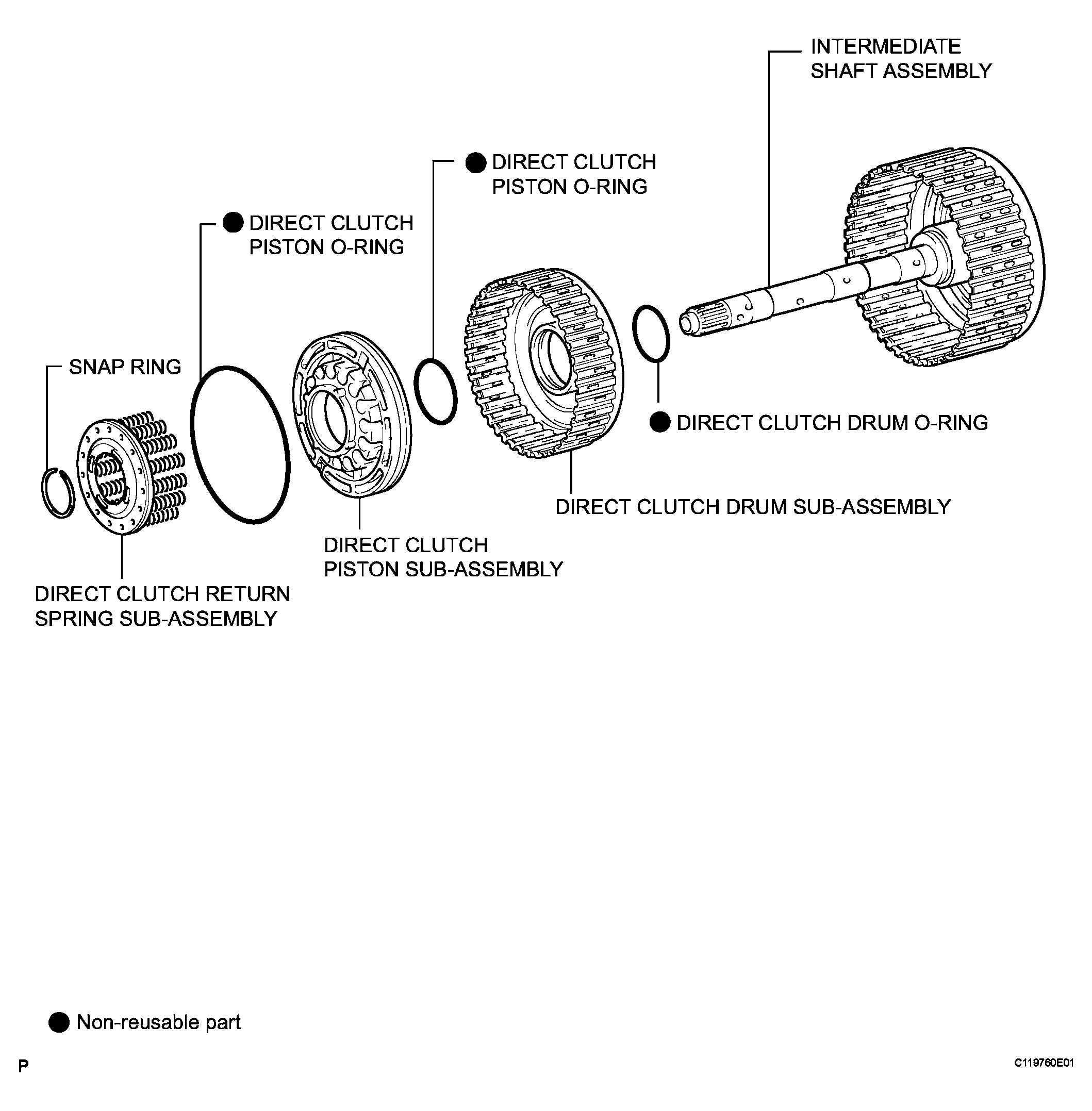

Fig 2: Identifying Clutch Disc Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
