Scion
›
2006
›
xB Automatic
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
U340E Automatic Transaxle
›
Park / Neutral Position Switch
›
Components
Park / Neutral Position Switch: Components

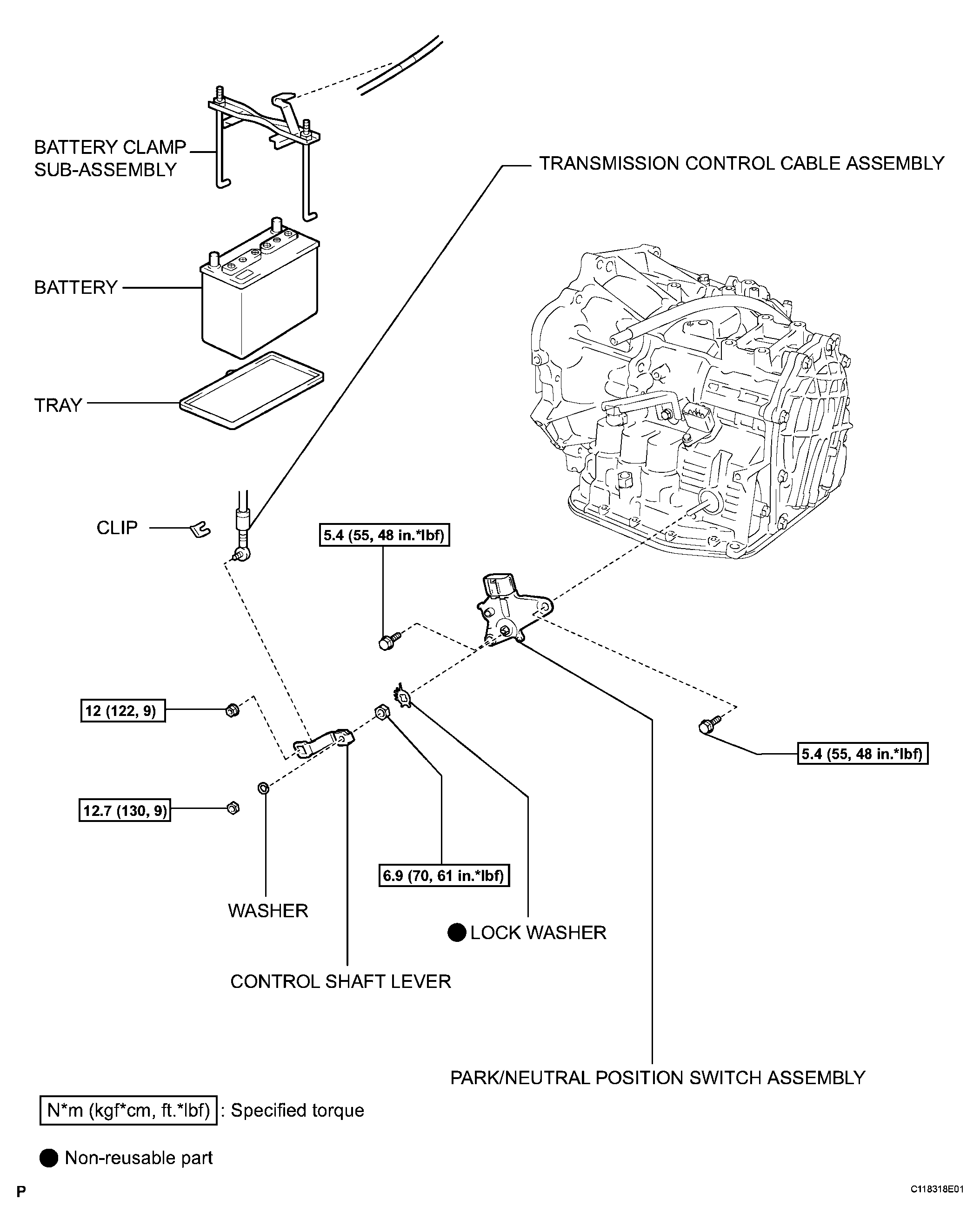

Fig 1: Identifying Park/Neutral Position Switch Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
