Transmission Wire: Components

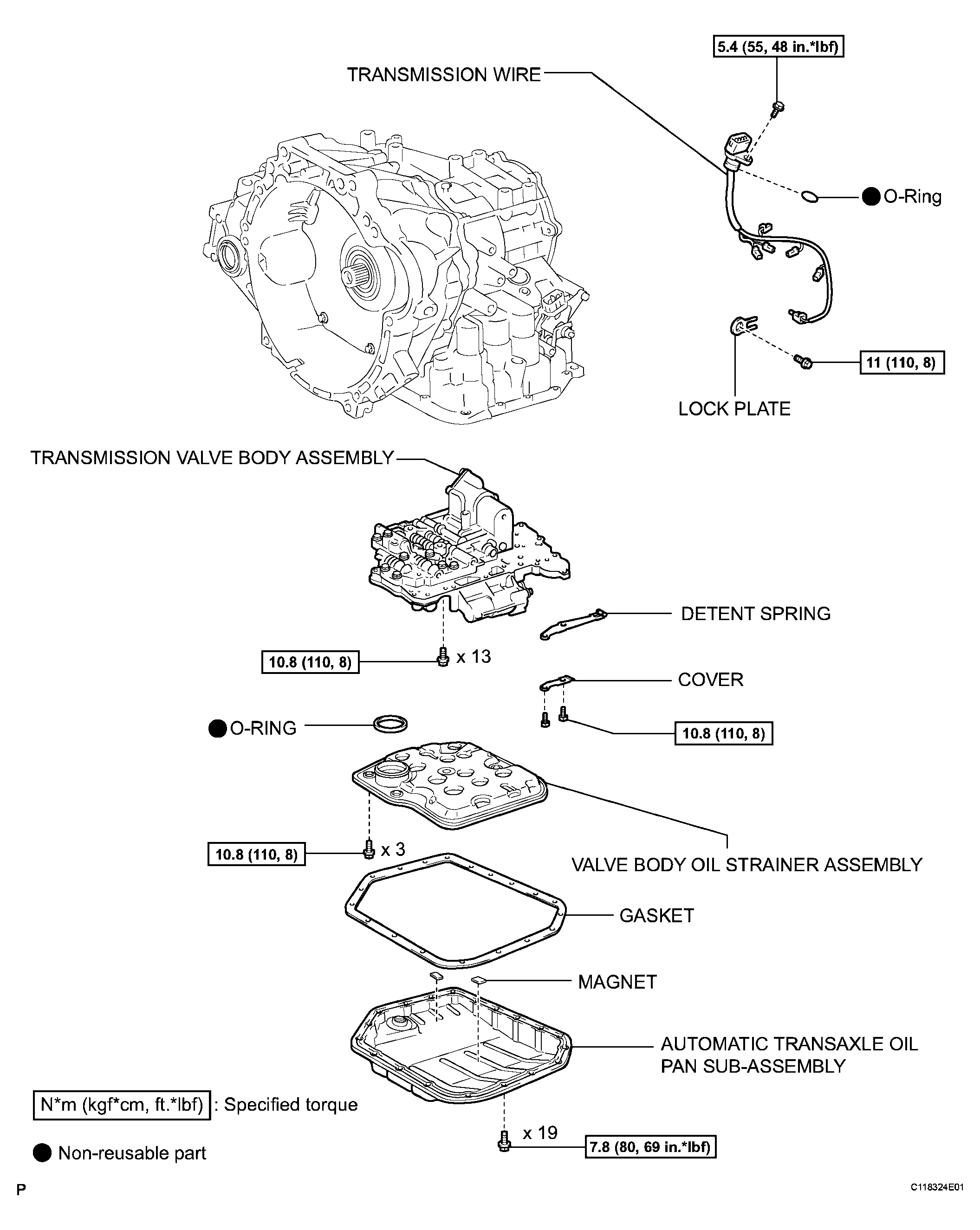

Fig 1: Identifying Transmission Components

G04227491

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
