Steering Pad Switch: Installation

INSTALL STEERING PAD SWITCH
1. Install the steering pad switch.
2. Install the screw.
3. Connect the connector.
INSTALL STEERING PAD ASSEMBLY (See INSTALLATION )
INSPECT STEERING PAD ASSEMBLY (See ON-VEHICLE INSPECTION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK SRS WARNING LIGHT
1. Check SRS warning light (see TERMINALS OF ECU ).

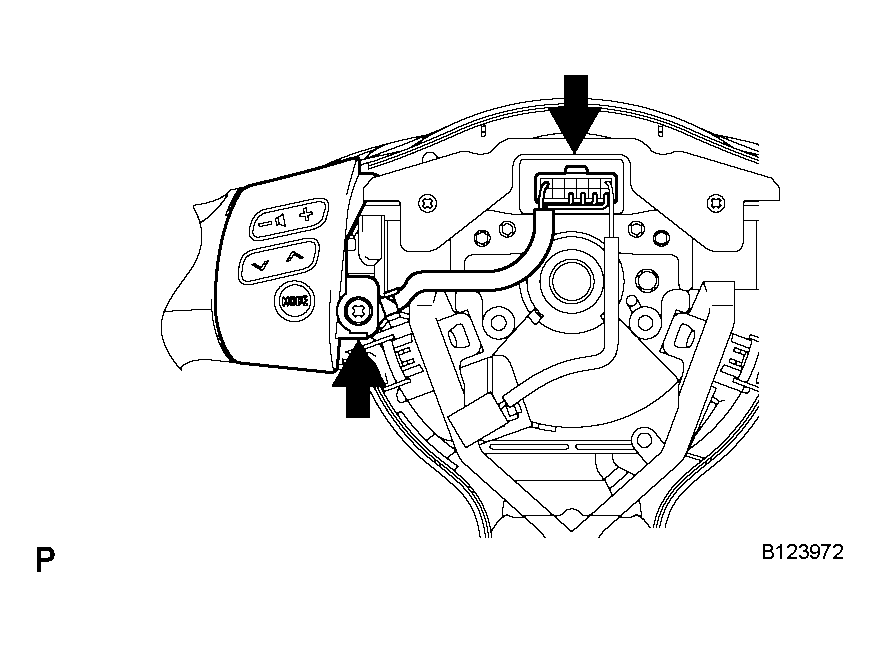

  Fig 1: Installing Steering Pad Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
