Front Speed Sensor: Removal

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE FRONT WHEEL
3. REMOVE FRONT SPEED SENSOR LH
   1. Disconnect the speed sensor connector.

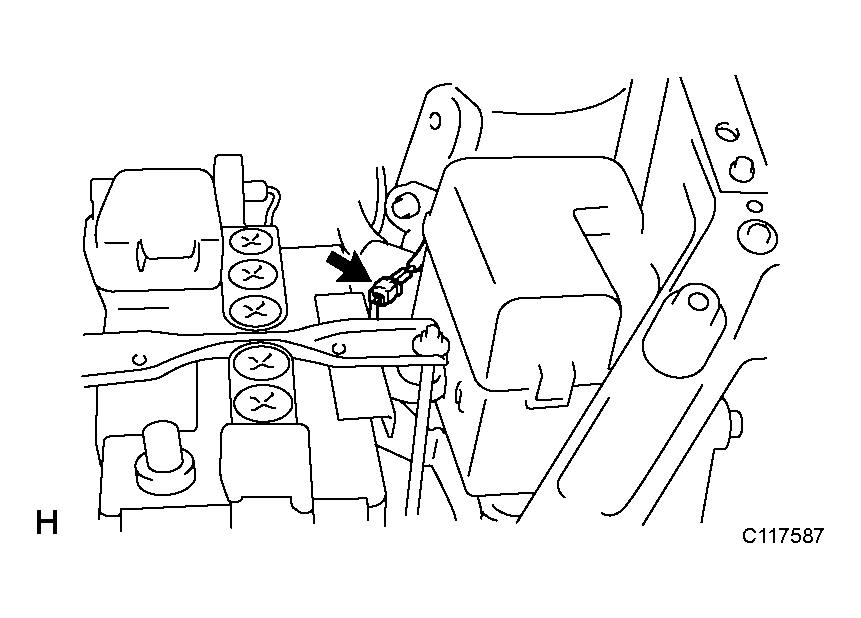

      Fig 1: Disconnecting Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 2 clamp bolts holding the speed sensor wire harness from the body and shock absorber.
   3. Disconnect the resin clip and speed sensor wire harness from shock absorber.

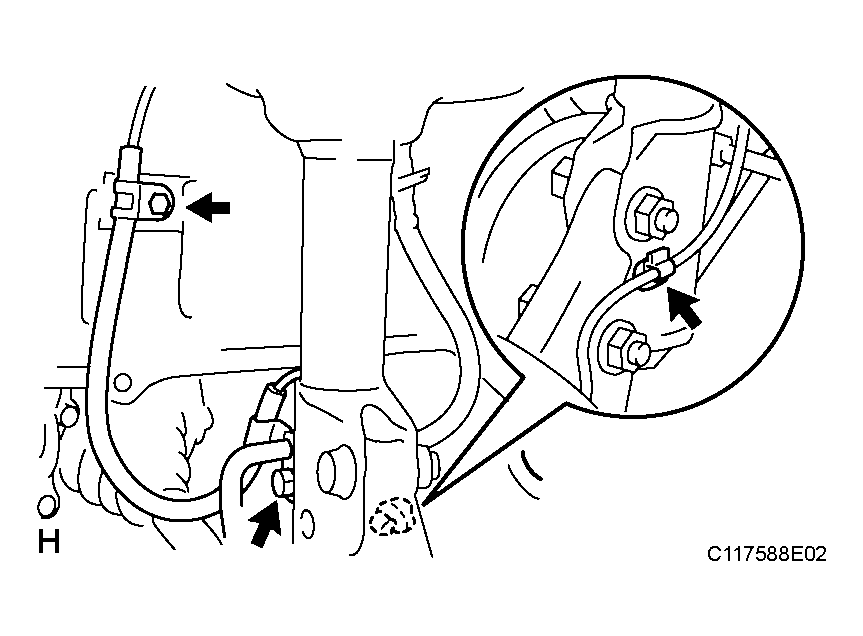

      Fig 2: Removing Bolts Holding Speed Sensor Wire Harness From Body And Shock Absorber

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Remove the bolt and speed sensor.
      NOTE: Keep the sensor tip and sensor installation hole free from foreign matter.

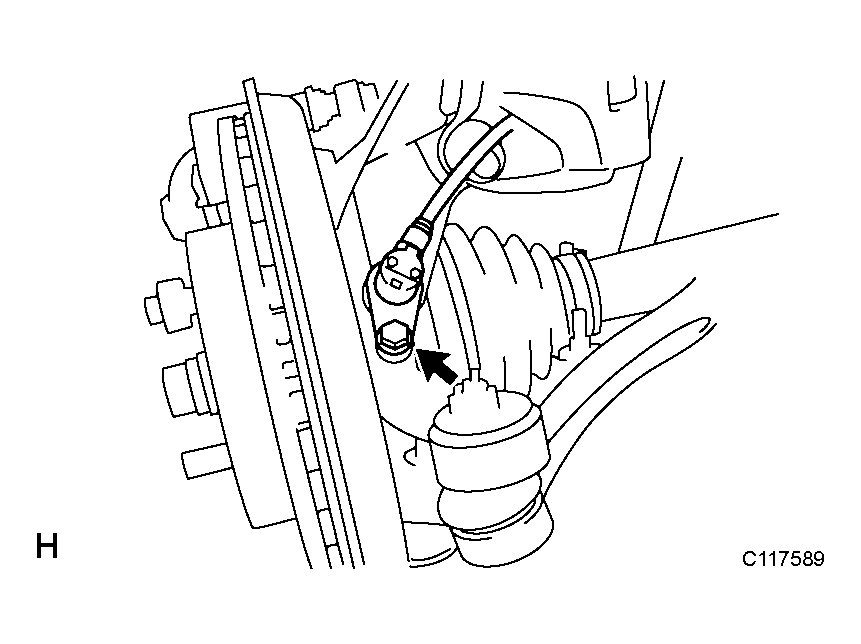

      Fig 3: Removing Bolt And Speed Sensor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
