DTC Check / Clear

CHECK DTC (When Using Intelligent Tester)
1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Read the DTCs by following the prompts on the tester screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.

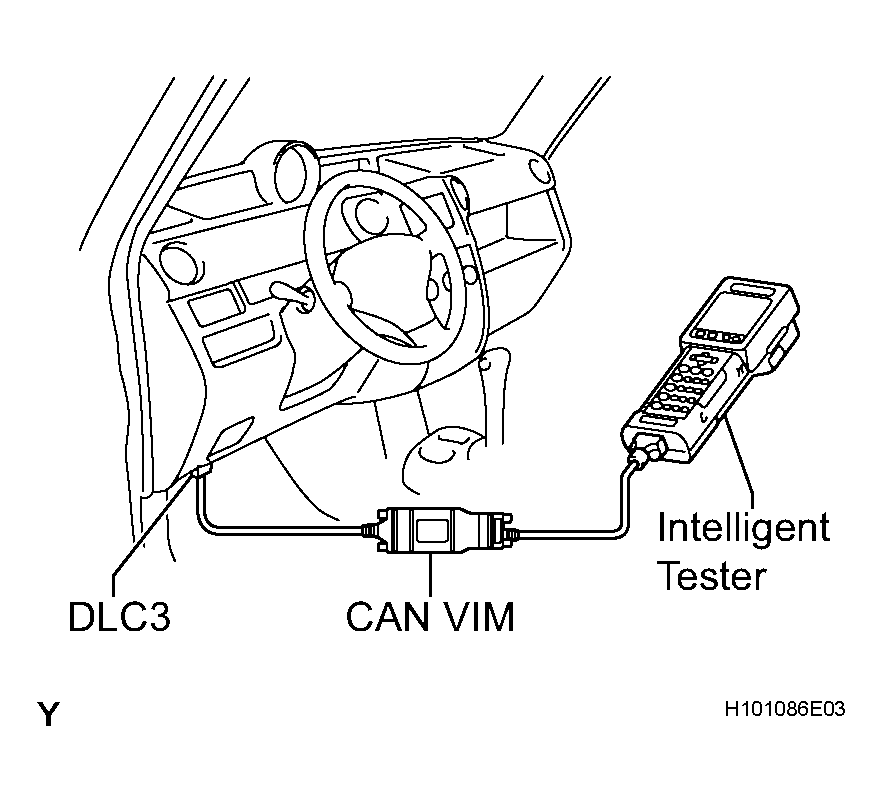

  Fig 1: Connecting Intelligent Tester (With CAN VIM) To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK DTC (When not Using Intelligent Tester)

Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
SST 09843-18040
Turn the ignition switch ON.

Read the DTC from the ABS warning light and VSC warning light on the combination meter.

HINT:

If no code appears, check the TC and CG circuit or ABS warning light and VSC warning light circuits.

Fig 2: Identifying Terminals 13 (TC) And 4 (CG) Of DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TROUBLE AREA INDEX REFERENCE

Trouble Area
ABS WARNING LIGHT CIRCUIT
VSC WARNING LIGHT CIRCUIT
TC AND CG TERMINAL CIRCUIT

If more than 1 DTC is detected at the same time, the DTCs will be displayed in numerical order.

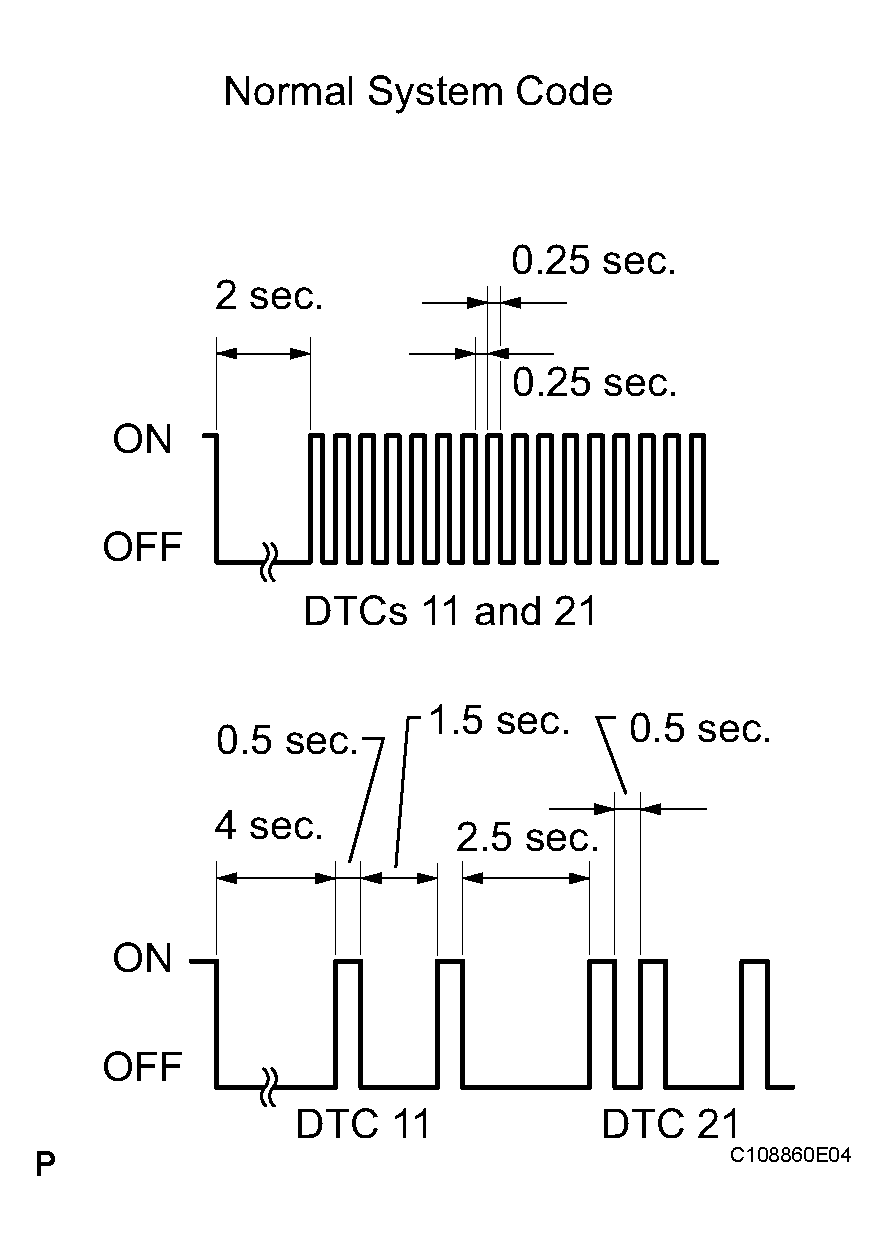

As an example, the blinking patterns for a normal system code and DTCs 11 and 21 are shown in the illustration.
DTCs are explained in the Diagnostic Trouble Code Chart.

After completing the check, disconnect terminals 13 (TC) and 4 (CG) of the DLC3. If 2 or more DTCs are detected at the same time, the DTCs will be displayed in numerical order.

Fig 3: Normal System Code Blinking Pattern
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CLEAR DTC (When Using Intelligent Tester)
1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Operate the intelligent tester to erase the codes.
  HINT:

  Refer to the intelligent tester operator's manual for further details.

  Fig 4: Connecting Intelligent Tester (With CAN VIM) To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CLEAR DTC (When not Using Intelligent Tester)
1. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
  SST 09843-18040
2. Turn the ignition switch ON.

  Fig 5: Identifying Terminals 13 (TC) And 4 (CG) Of DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Clear the DTCs stored in the ECU by depressing the brake pedal 8 times or more within 5 seconds.
4. Check that the ABS warning light and VSC warning light indicate the normal system code.
5. Remove SST from the terminals of the DLC3.
  HINT:

  DTCs cannot be cleared by removing the battery cable or ECU-IG fuse.

  Fig 6: Checking ABS Warning Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
