Camshaft Position Sensor: Components

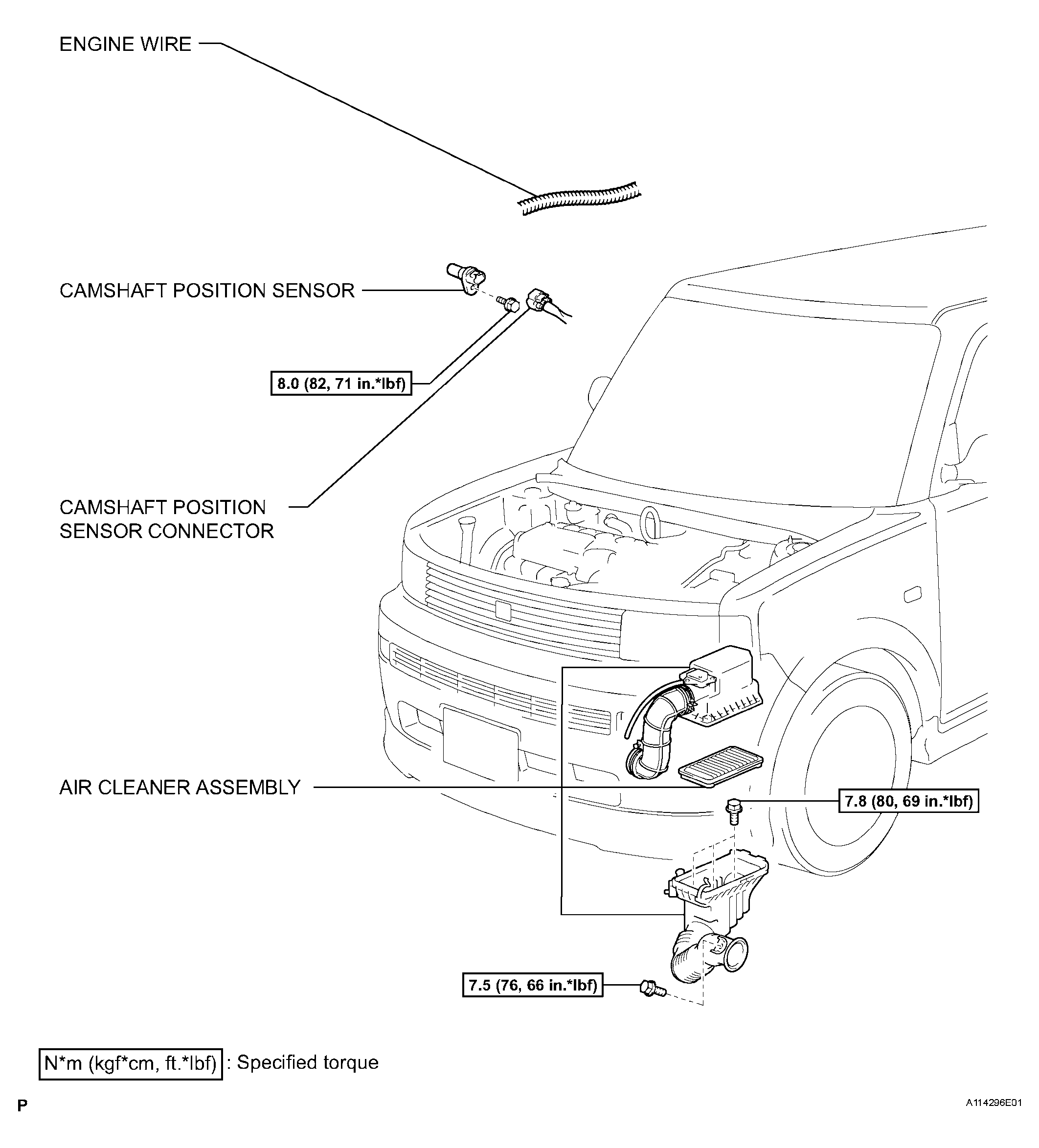

Fig 1: Identifying Camshaft Position Sensor Components
G04225721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
