Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (1NZ-FE)
›
Parts Location
›
Stop Light Switch Circuit
›
Wiring Diagram
Stop Light Switch Circuit: Wiring Diagram

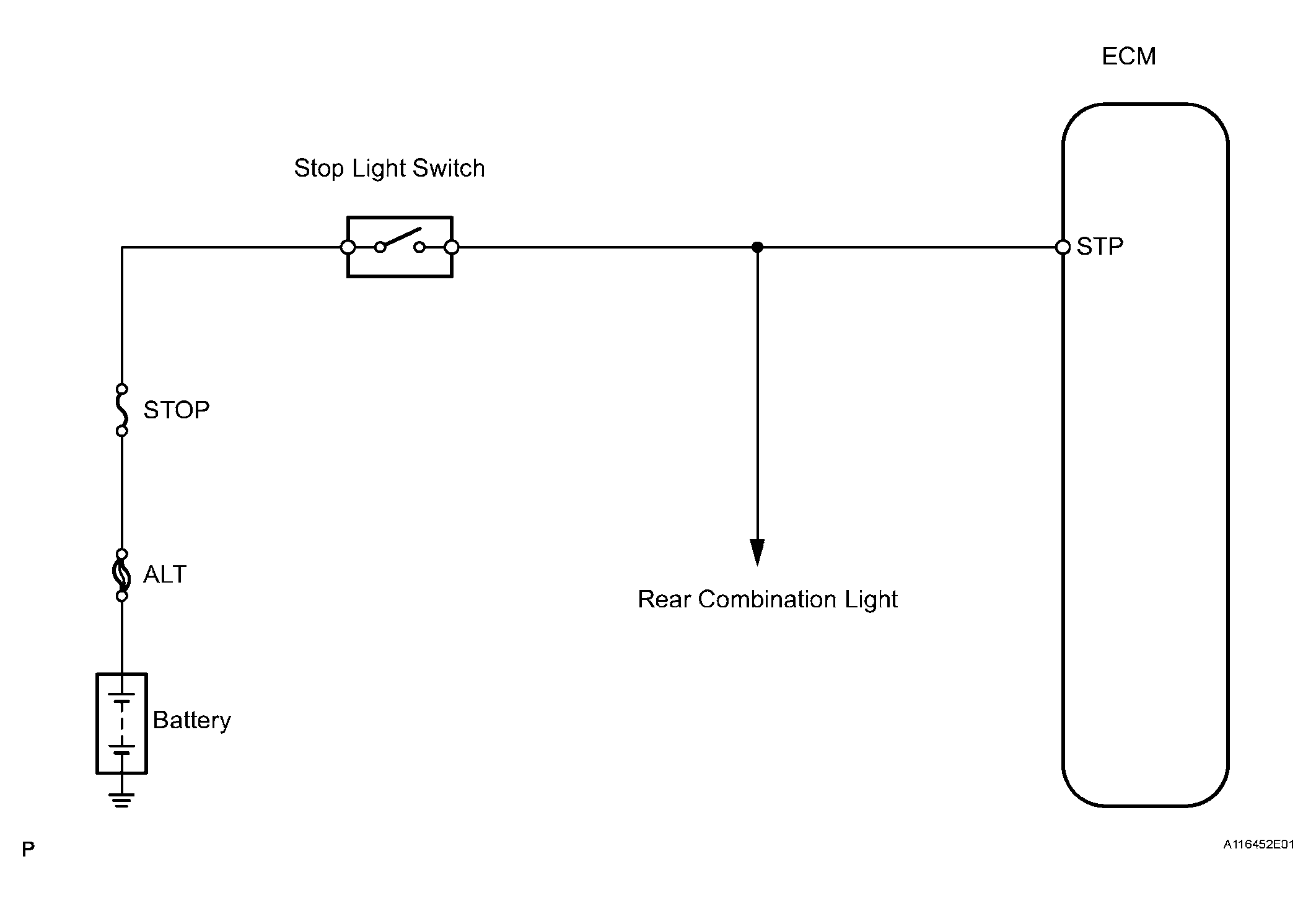

Fig 1: Identifying Stop Light Switch Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
