Power Steering Link: Components

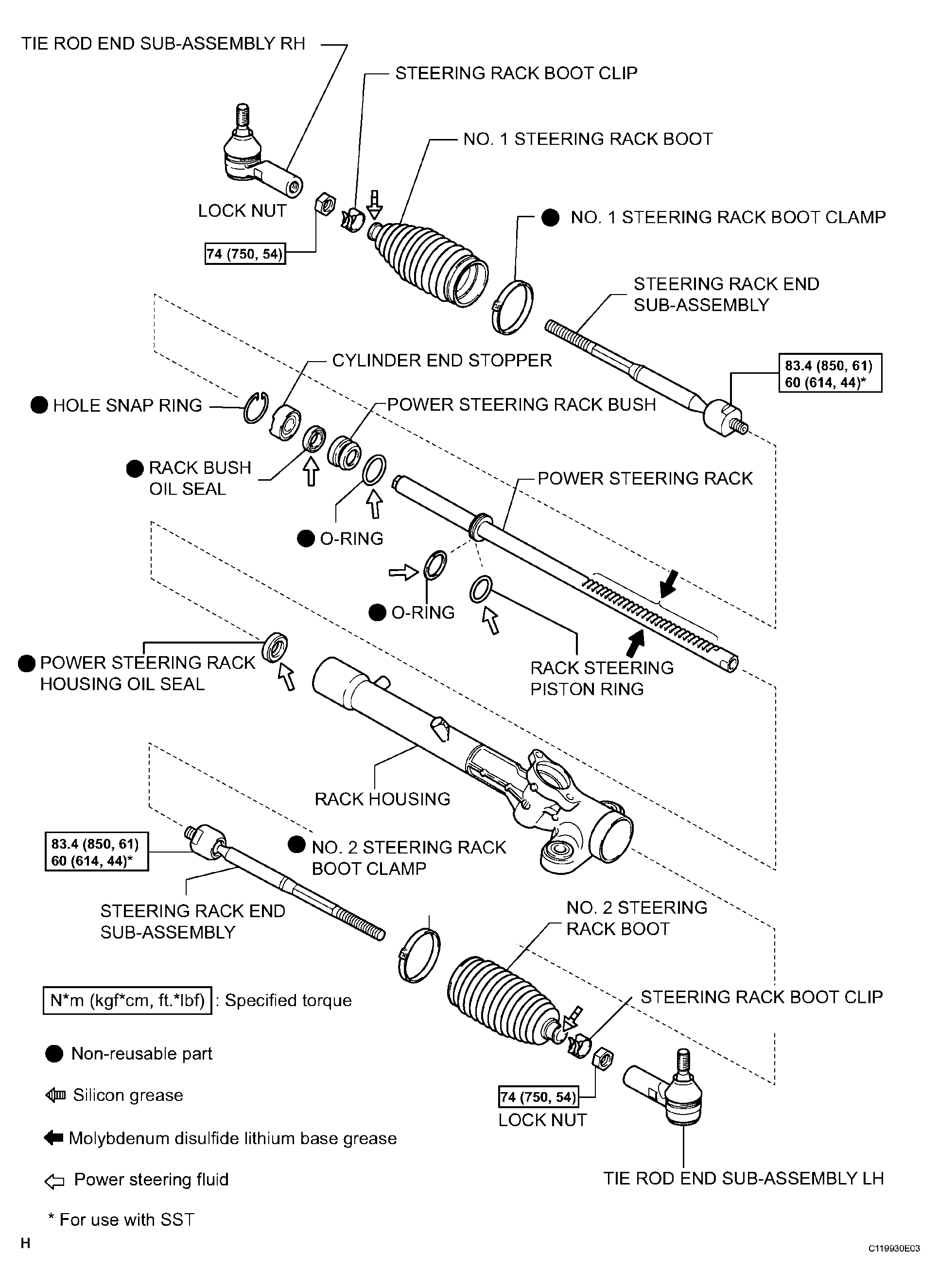

Fig 1: Identifying Power Steering Link Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

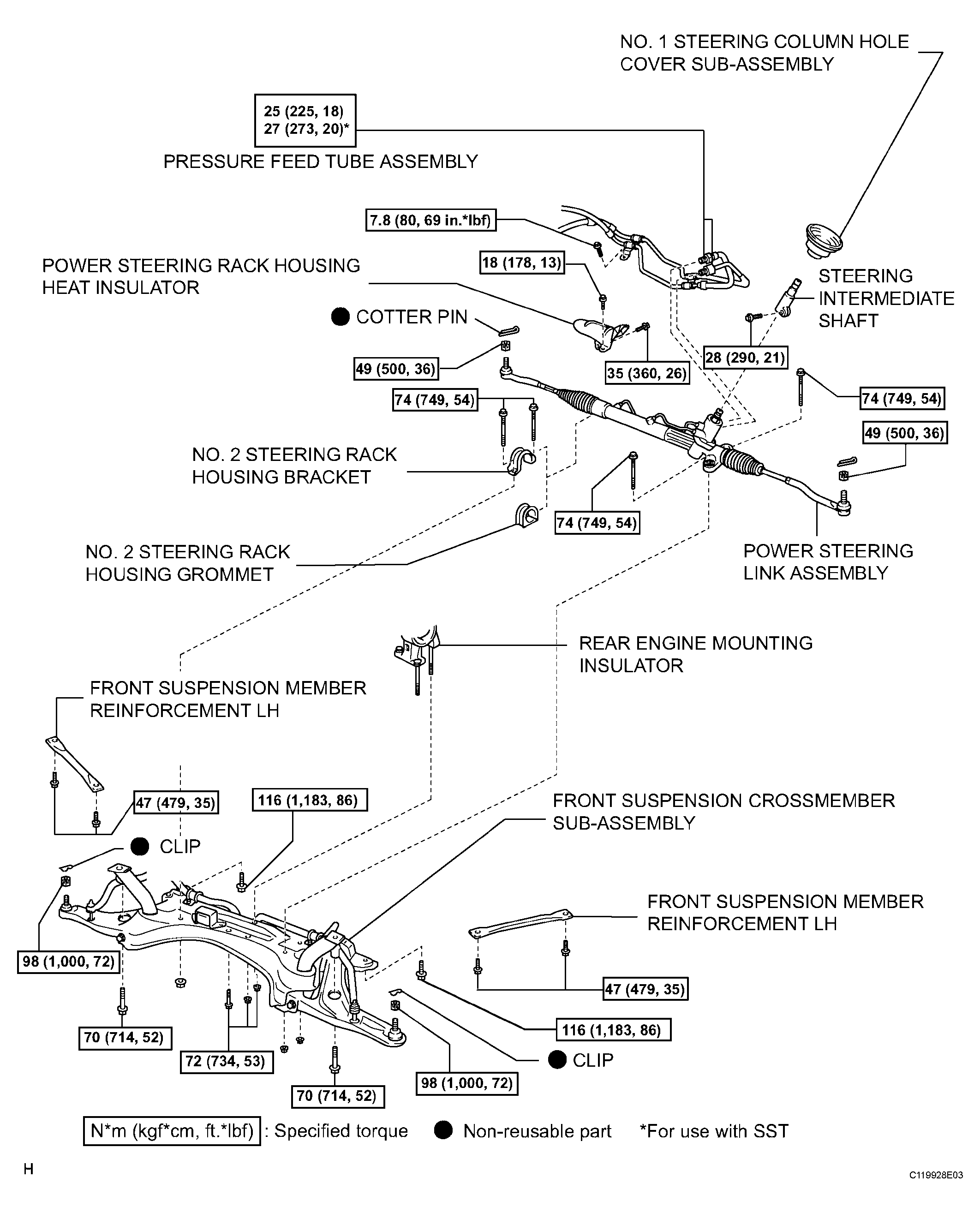

Fig 2: Identifying Power Steering Link Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

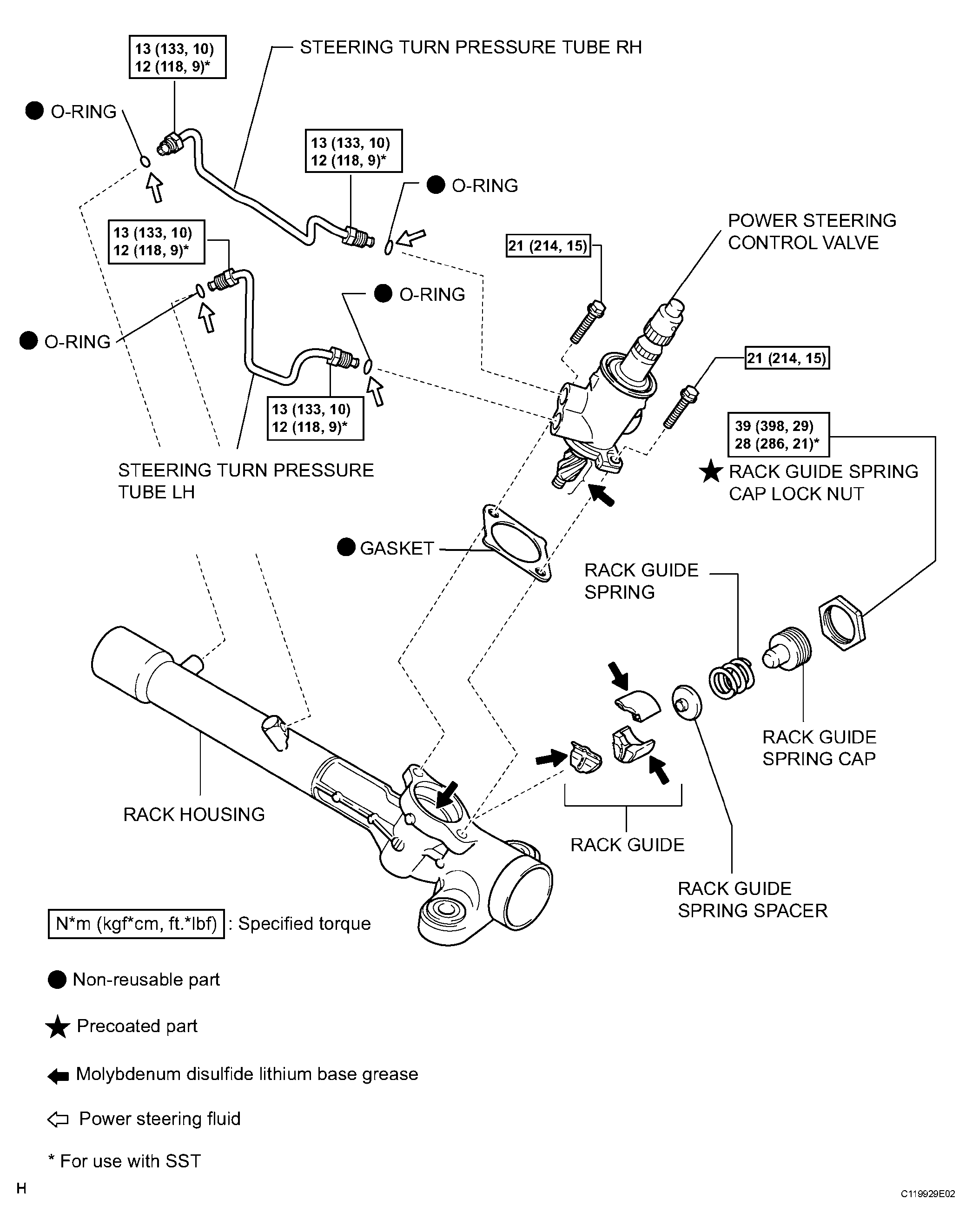

Fig 3: Identifying Power Steering Link Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
