Transmission Control Cable: Removal

  1. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Remove the shift lever knob (See REMOVAL ).
  3. REMOVE REAR CONSOLE BOX ASSEMBLY
    1. Remove the rear console box (See REMOVAL ).
  4. DISCONNECT FLOOR SHIFT LEVER ASSEMBLY
    1. Disconnect the wire harness.

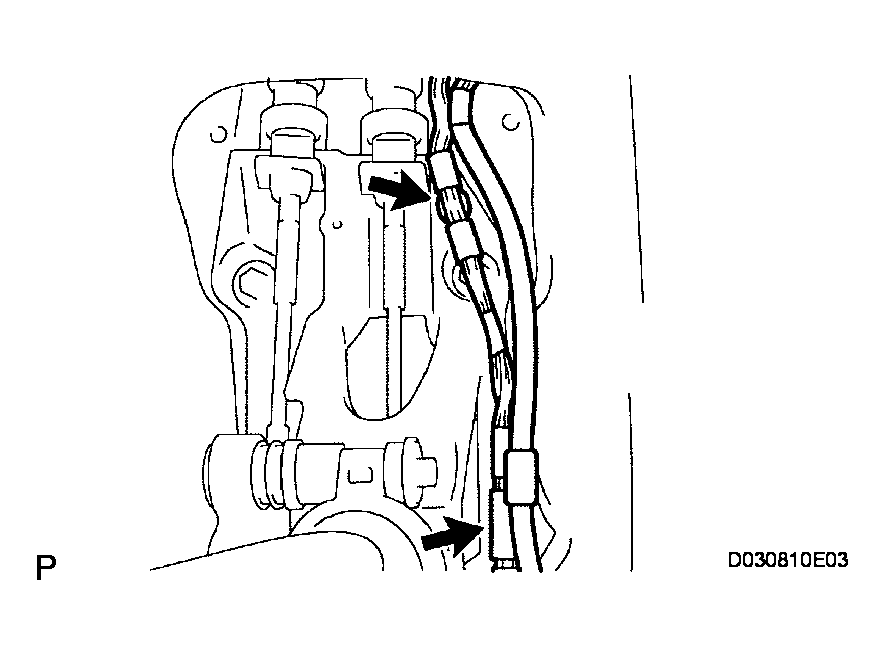

      Fig 1: Disconnecting Wire Harness
      G04228059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and disconnect the floor shift lever.

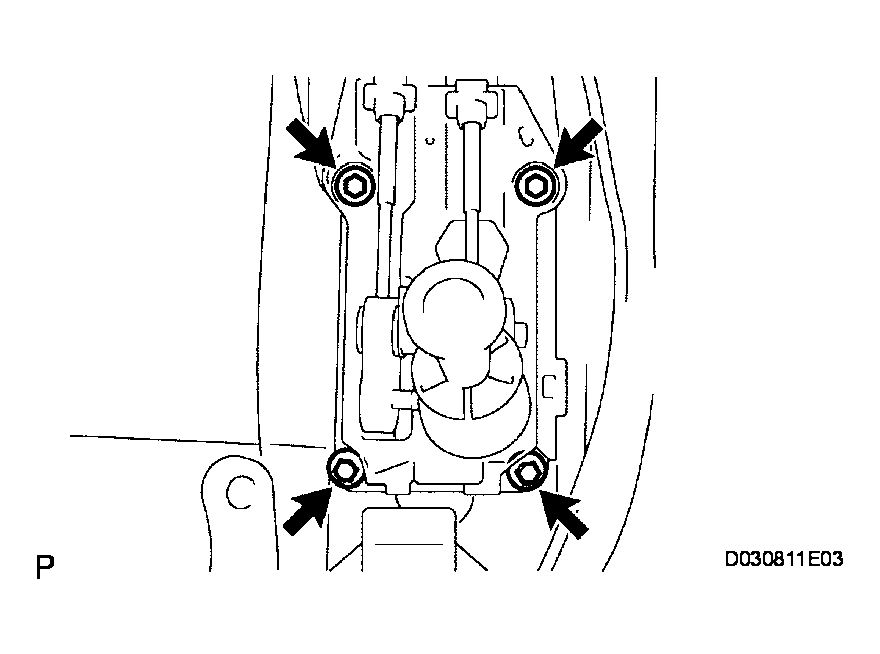

      Fig 2: Disconnecting Floor Shift Lever By Removing Bolts
      G04228060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Remove the clip, and disconnect the cable end of the transmission control select cable from the floor shift lever.
      Fig 3: Removing Clip
      G04228061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the claw.
    3. Disconnect the transmission control select cable from the shift lever retainer.

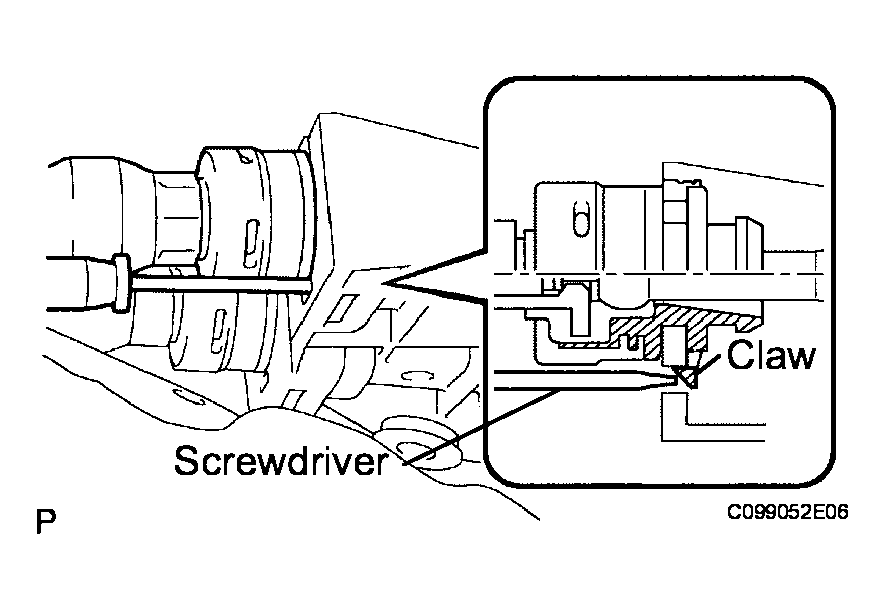

      Fig 4: Detaching Claw Using Screwdriver
      G04228062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the clip, and disconnect the cable end of the transmission control shift cable from the floor shift lever.
      Fig 5: Removing Clip
      G04228063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a screwdriver, detach the claw.
    6. Disconnect the transmission control shift cable from the shift lever retainer.

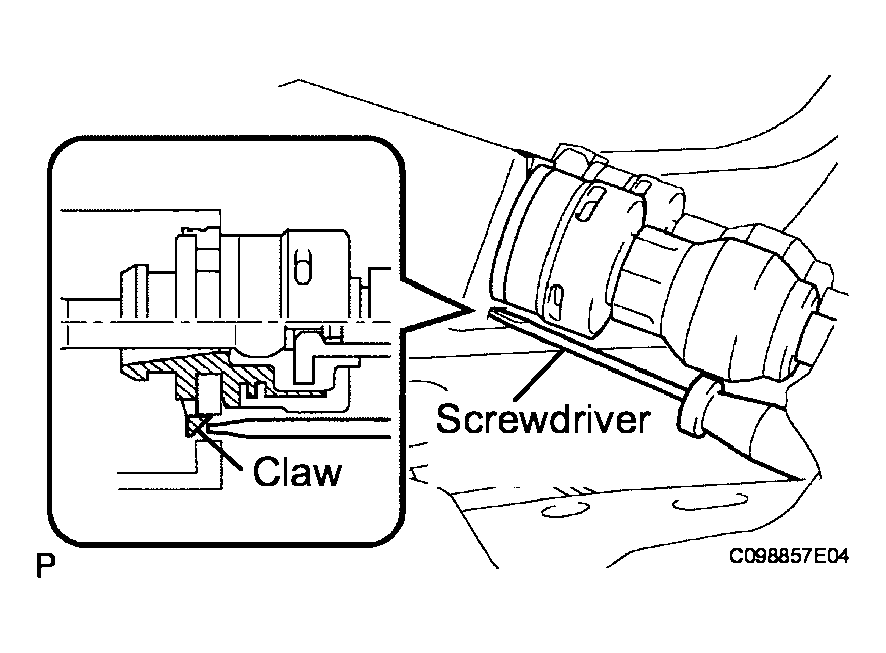

      Fig 6: Detaching Claw Using Screwdriver
      G04228064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 2 clips and 2 washers, and disconnect the 2 cables from the manual transaxle.
    8. Remove the 2 clips, and disconnect the 2 cables from the control cable bracket.
      Fig 7: Removing Clips And Washers
      G04228065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Remove the 2 bolts and retainer from the floor.
      Fig 8: Removing Bolts And Retainer From Floor
      G04228066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Remove the retainer from the grommet.
    11. Remove the transmission control select cable from the grommet.
      Fig 9: Removing Retainer From Grommet
      G04228067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Remove the bolt and clamp.
    13. Pull out the transmission control select cable and transmission control shift cable through the floor hole.

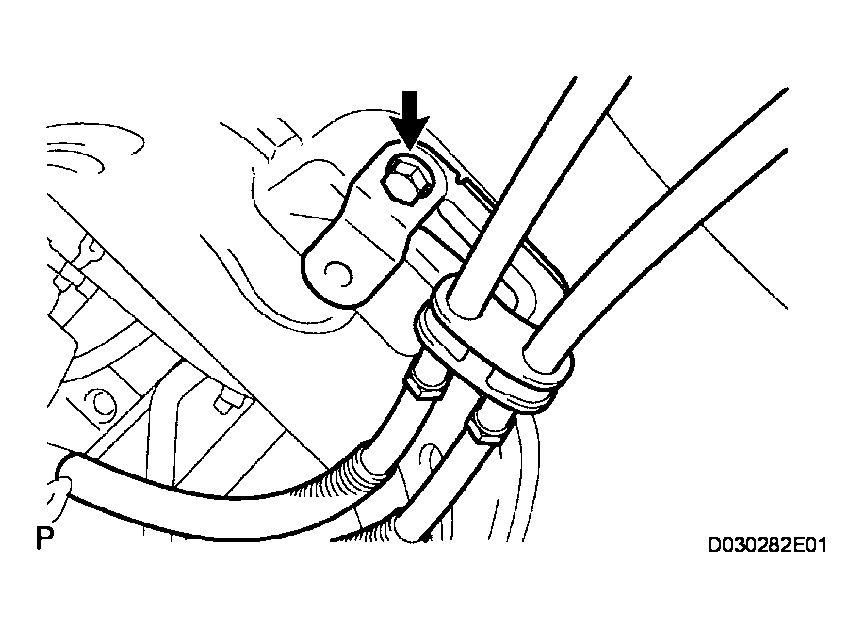

      Fig 10: Removing Bolt And Clamp
      G04228068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
