Key Lock-in Prevention Function does not Work Properly: Wiring Diagram

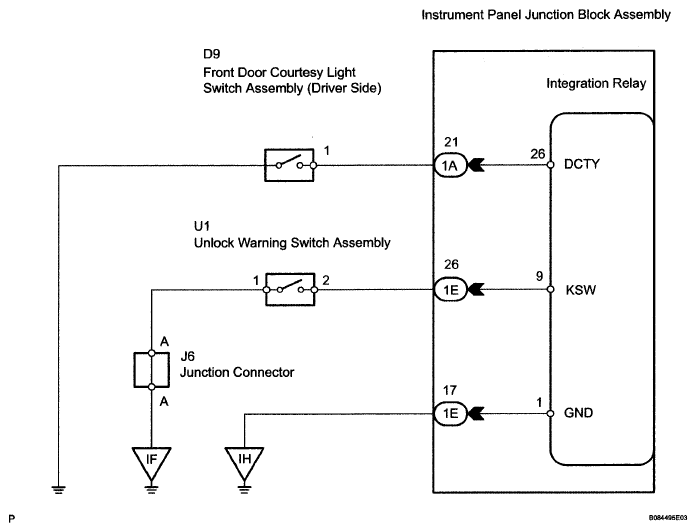

Fig 1: Identifying Key Lock-In Prevention Function Does Not Work Properly Wiring Diagram
G04867158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
