Door Locks
›
Door Lock
›
Wireless Door Lock Control System
›
Only Wireless Control Function is Inoperative
›
Wiring Diagram
Only Wireless Control Function is Inoperative: Wiring Diagram

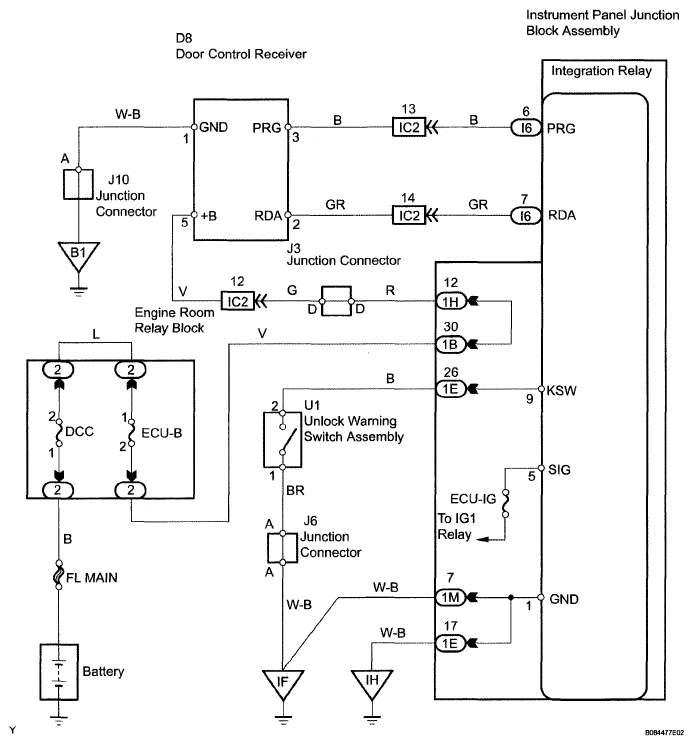

Fig 1: Identifying Only Wireless Control Function Inoperative Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
