Windshield/WINDOWGLASS
›
POWER WINDOW CONTROL SYSTEM (w/o Jam Protection Function)
›
System Diagram
System Diagram

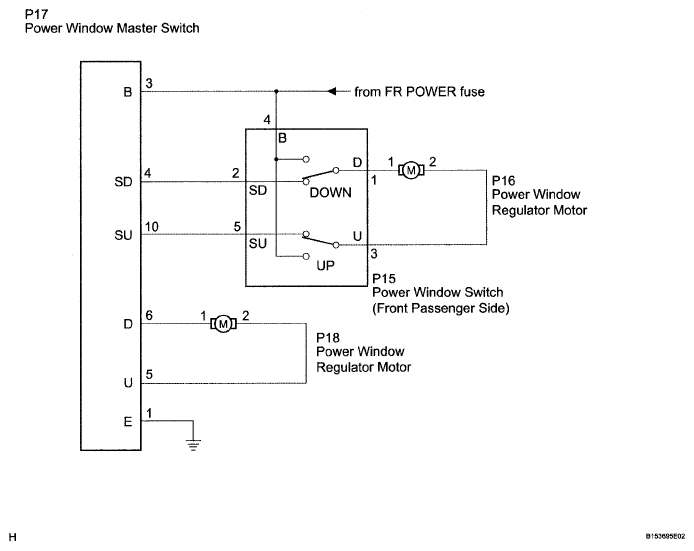

Fig 1: Identifying Power Window Control System Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
