Windshield Glass: Components

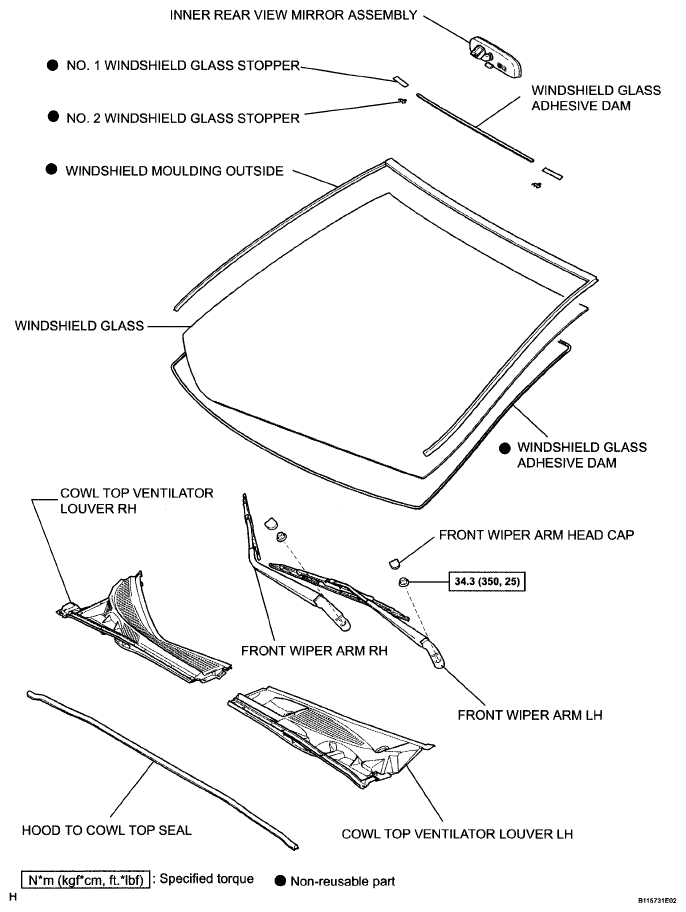

Fig 1: Identifying Windshield Glass Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Windshield Glass Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
