Front Axle Hub Bolt: Components

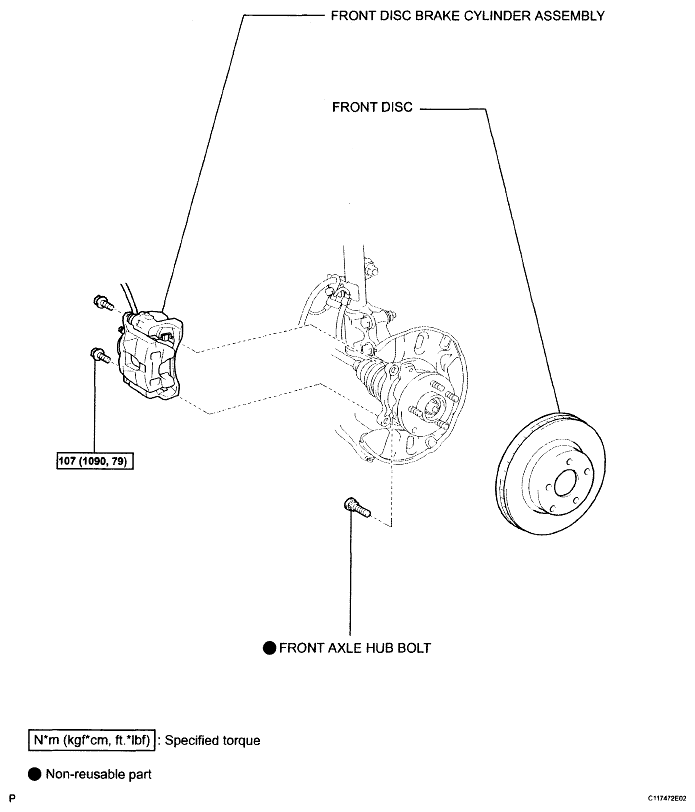

Fig 1: Identifying Front Axle Hub Bolt Components With Specification
G04868322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
