Front Axle Hub: Components

Fig 1: Identifying Front Axle Hub Components With Specifications (1 Of 2)
G04868326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

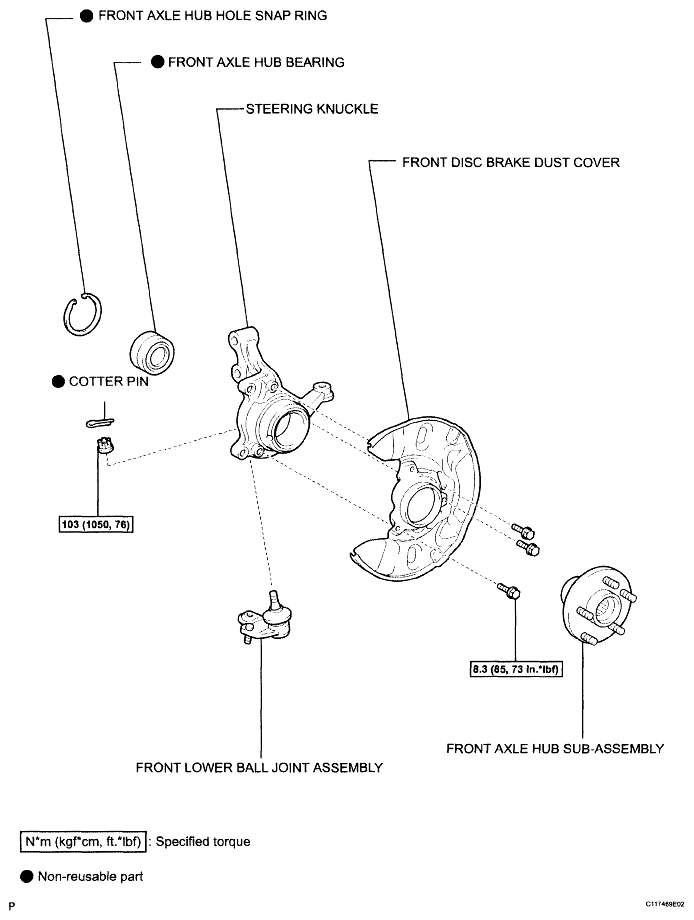

Fig 2: Identifying Front Axle Hub Components With Specifications (2 Of 2)
G04868327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
