Rear Axle Carrier: Components

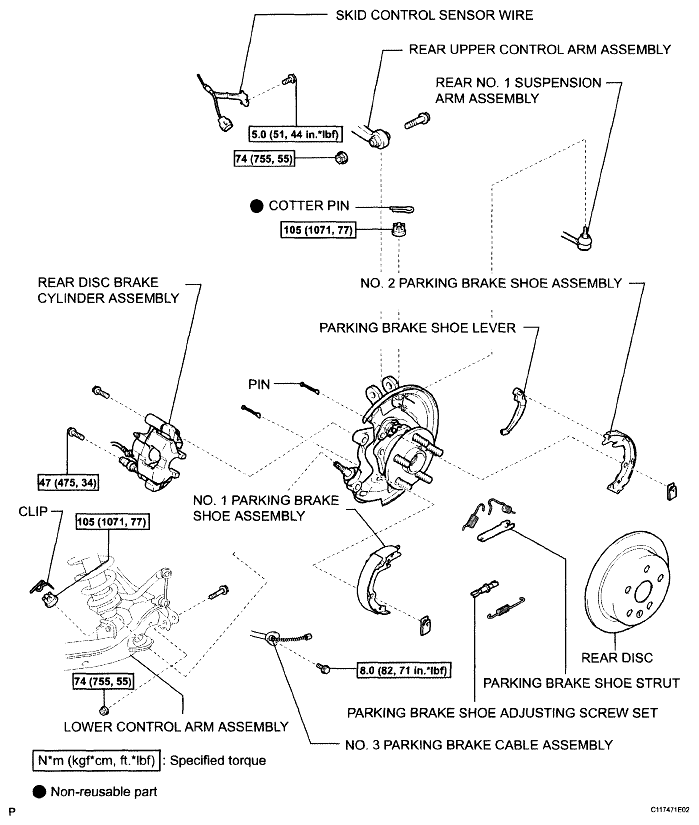

Fig 1: Identifying Rear Axle Carrier Components With Specifications (1 Of 2)
G04868355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

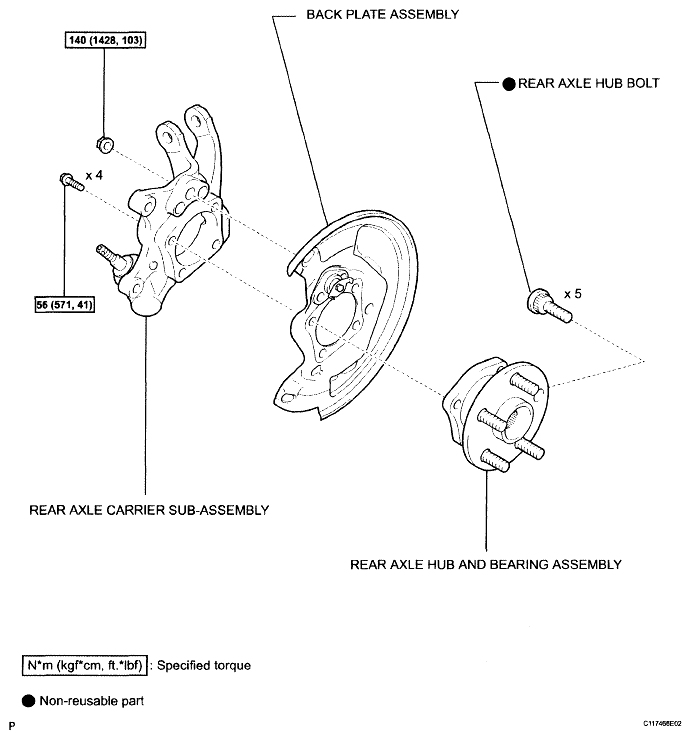

Fig 2: Identifying Rear Axle Carrier Components With Specifications (2 Of 2)
G04868356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
