OEM System Circuits: Headlight: Notes

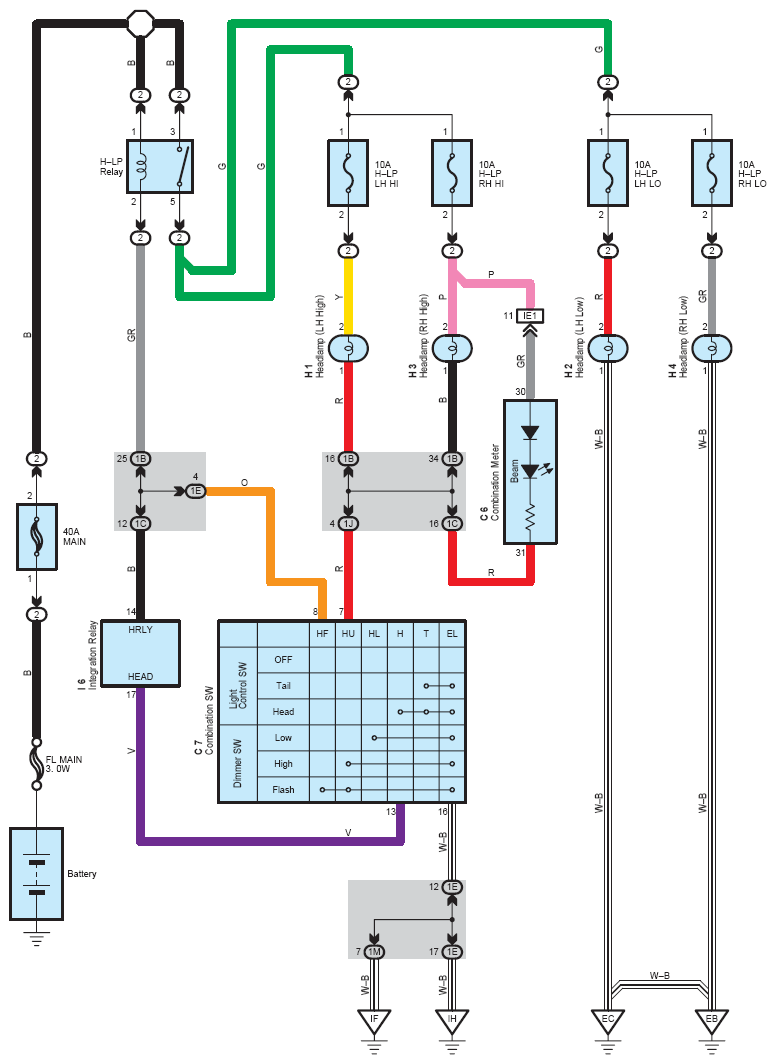

Fig 1: Headlight System Wiring Diagram
G08759380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
