Key Reminder: Notes

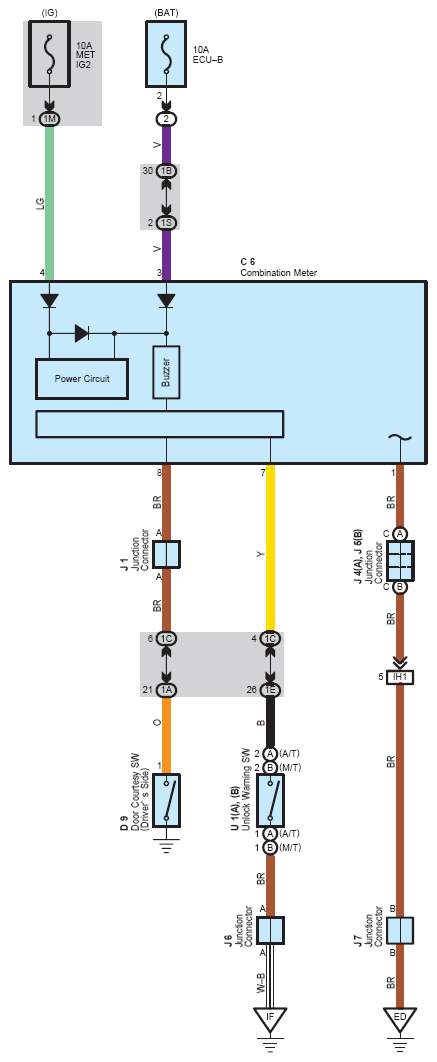

Fig 1: Key Reminder System Wiring Diagram
G08759428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
