Multiplex Communication System - CAN: Notes

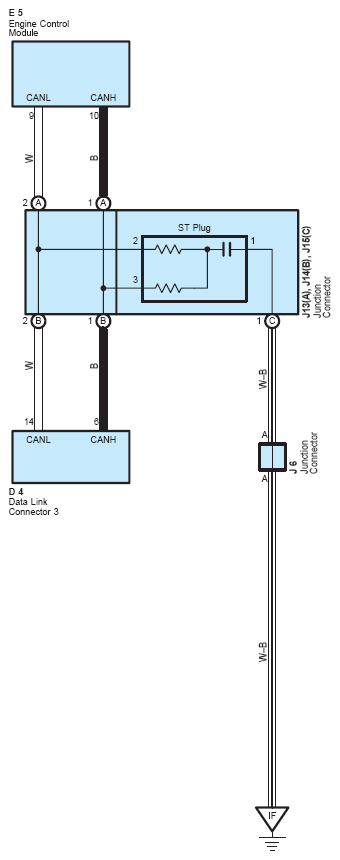

Fig 1: Multiplex CAN Communication System Wiring Diagram

G08759379

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
