Power Window without Jam Protection
›
Notes
Power Window without Jam Protection: Notes

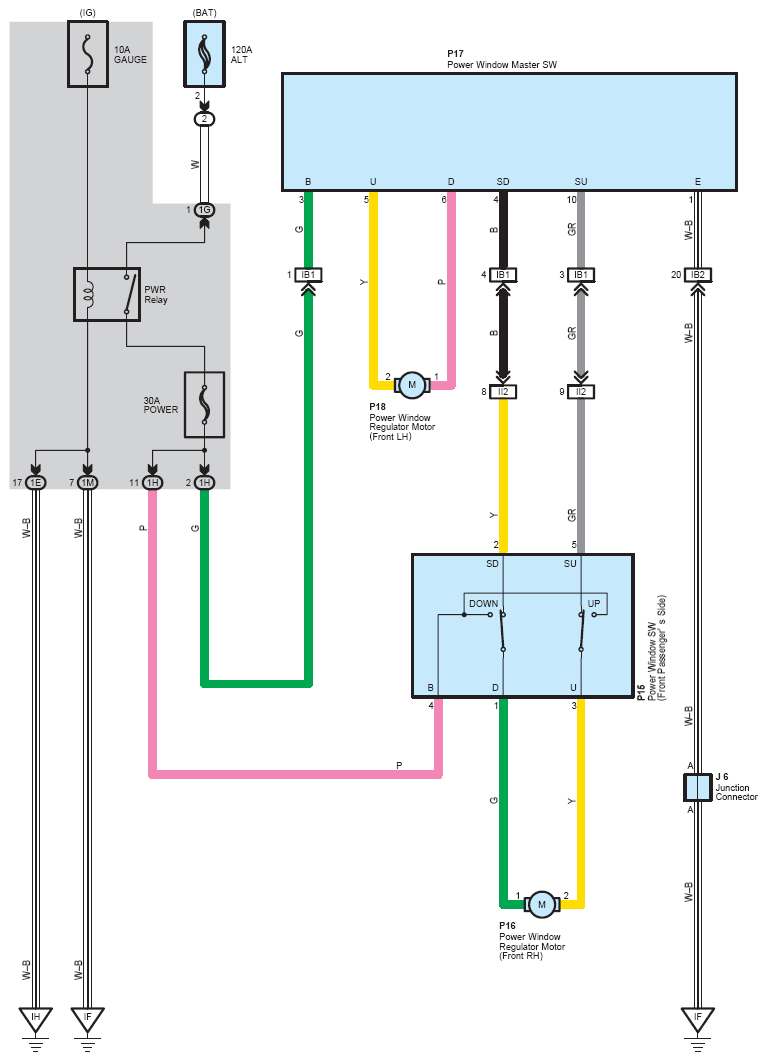

Fig 1: Power Window Without Jam Protection System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
