OEM System Circuits: Taillight: Notes

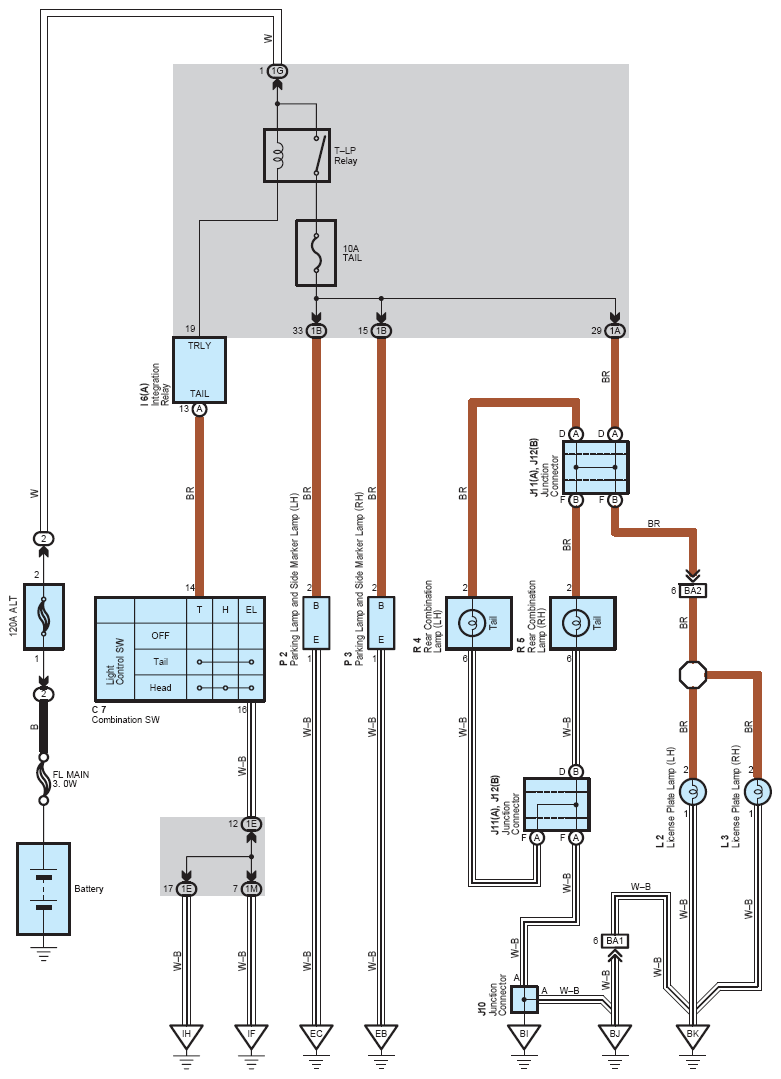

Fig 1: Taillight System Wiring Diagram
G08759388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
