Lower Instrument Panel: Components

Fig 1: Identifying Lower Instrument Panel Components With Specification (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

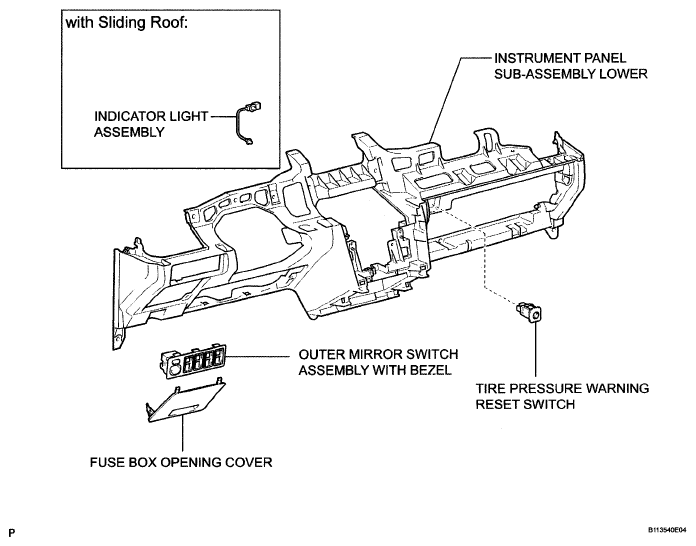

Fig 2: Identifying Lower Instrument Panel Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

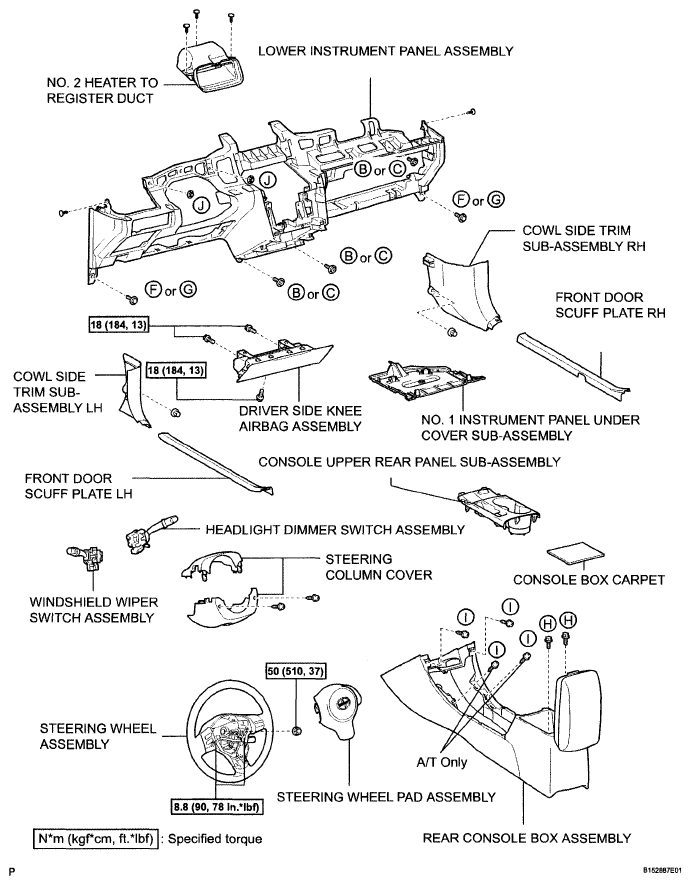

Fig 3: Identifying Lower Instrument Panel Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
