Water Pump: Components

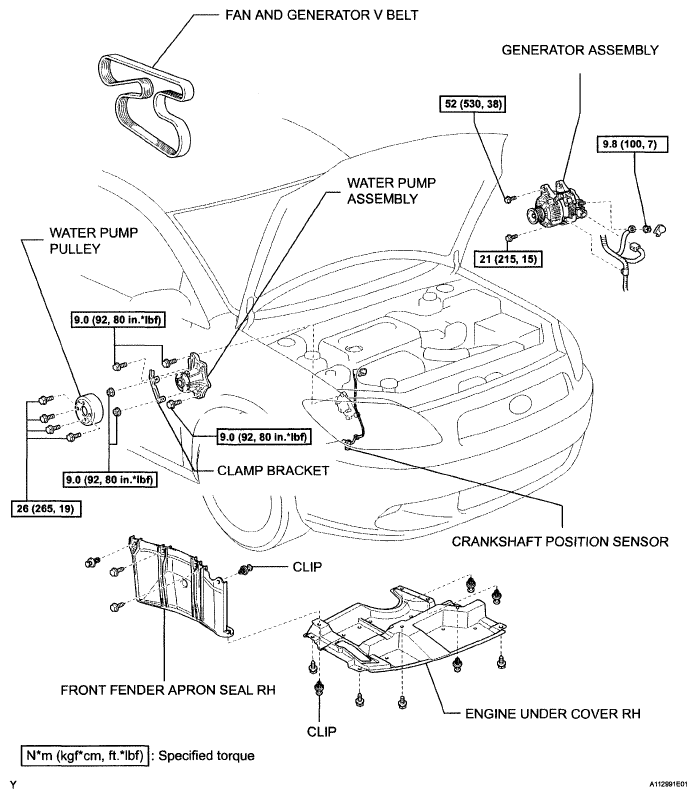

Fig 1: Identifying Water Pump Components Location With Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
