Engine Control System (2AZ-FE)
›
Camshaft Position Sensor
›
Components
Camshaft Position Sensor: Components

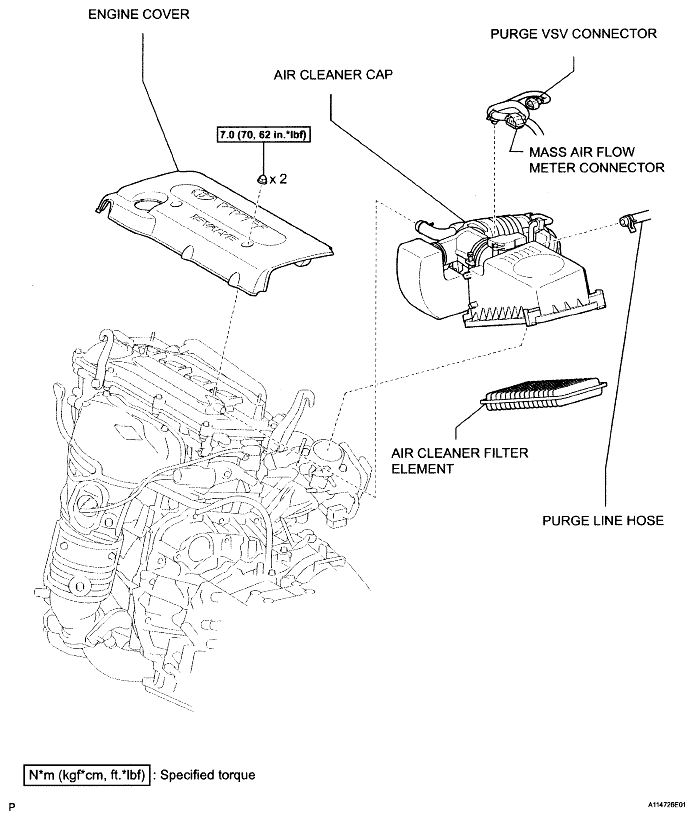

Fig 1: Identifying Camshaft Position Sensor Components With Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

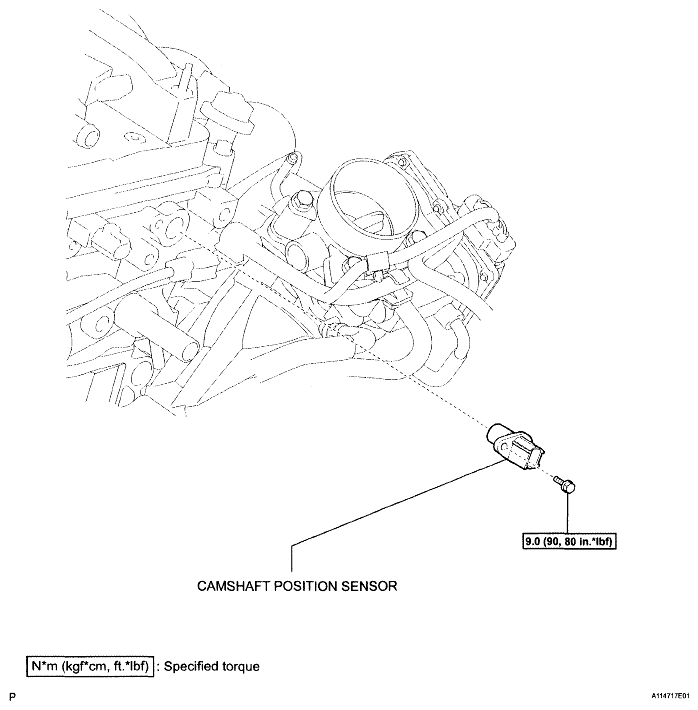

Fig 2: Identifying Camshaft Position Sensor Components With Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
