Fuel Injector: Components

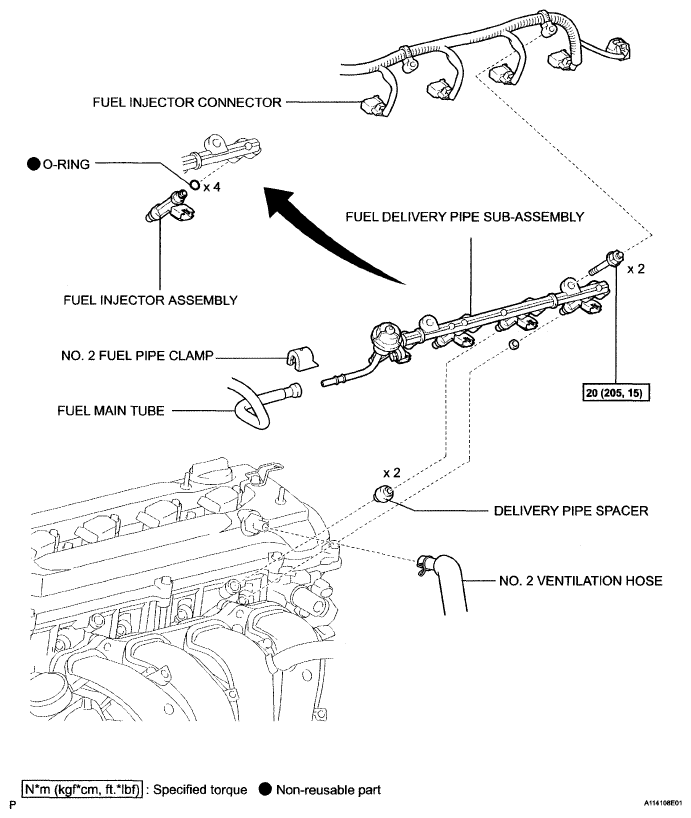

Fig 1: Identifying Fuel Injector Components Location With Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Fuel Injector Components Location With Specification (2 Of 2)
