Fuel Pump: Components

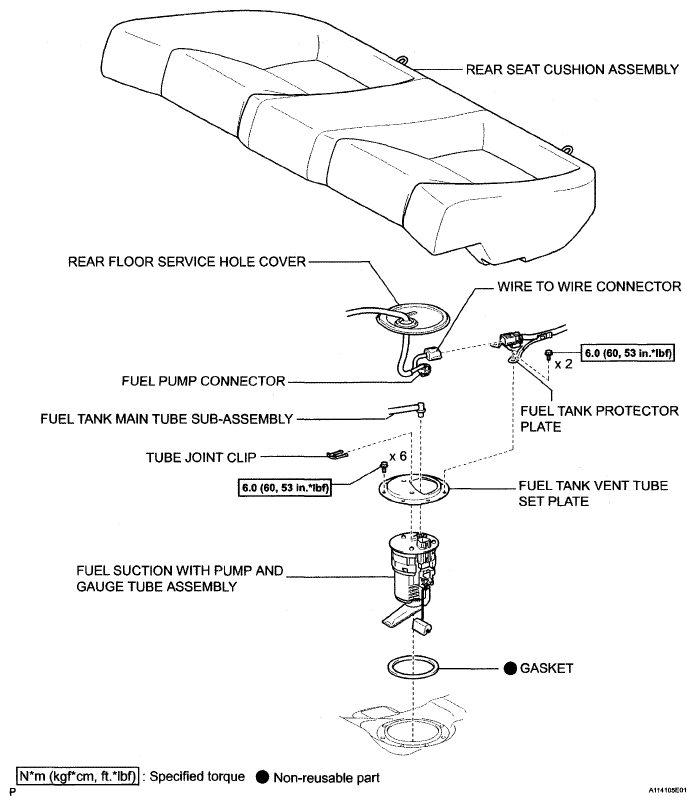

Fig 1: Identifying Fuel Pump Components Location With Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

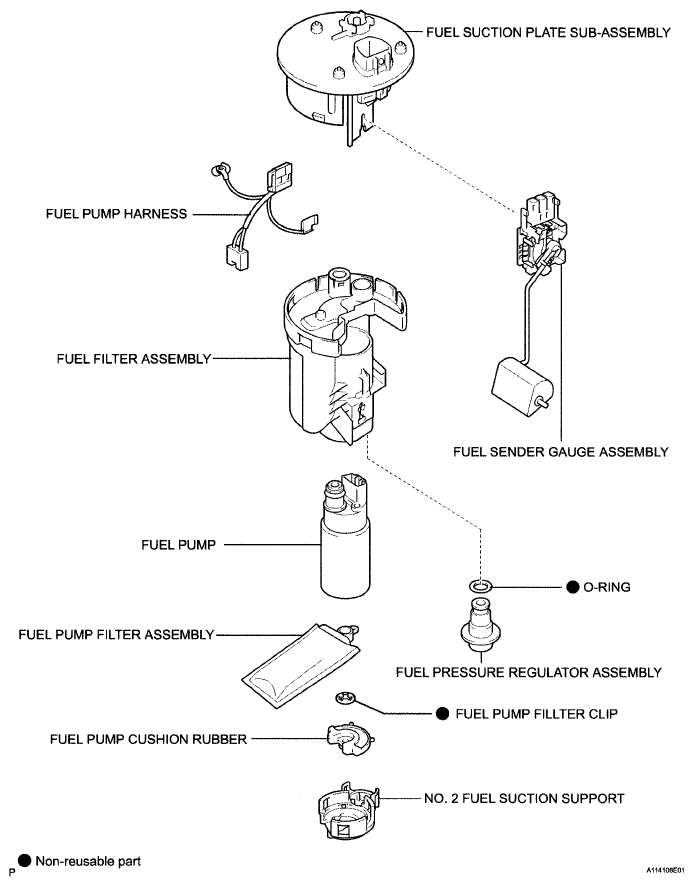

Fig 2: Identifying Fuel Pump Components Location With Specifications (2 Of 2)
