Clutch Unit: Components

WARNING: This page is about a different variant/trim than selected.

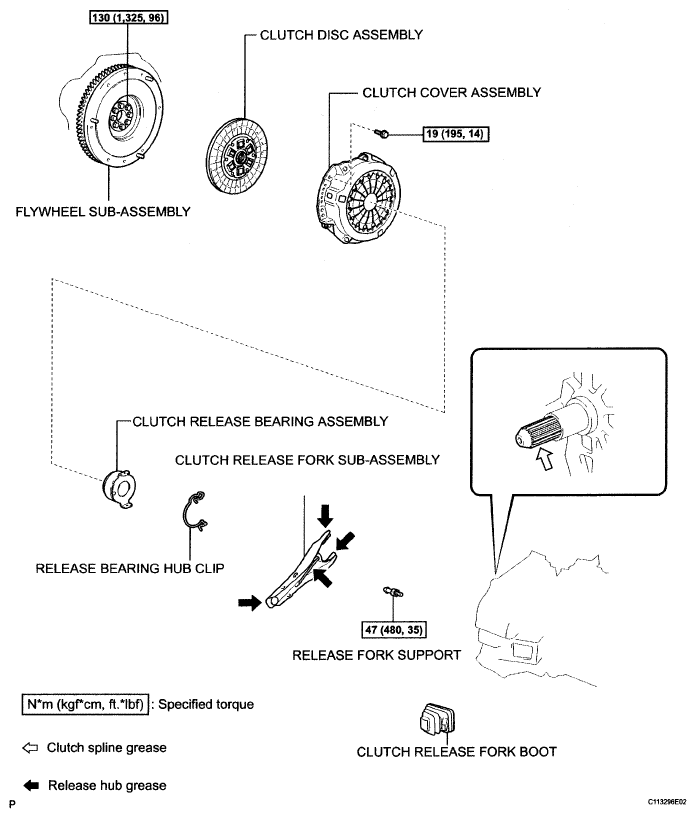

Fig 1: Identifying Clutch Unit Components With Specifications
G04867883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
