Parts Location

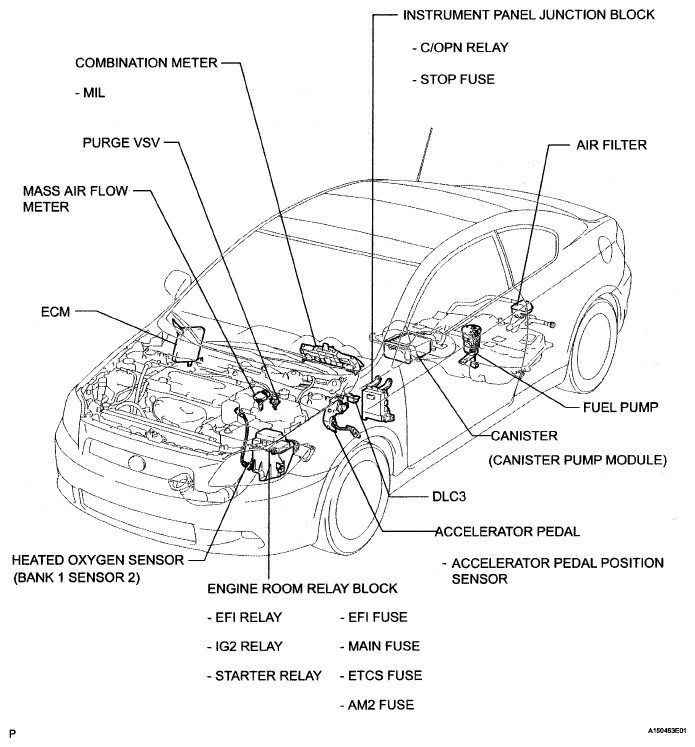

Fig 1: Identifying 2AZ-FE Engine Control System Parts Location - SFI System (1 Of 2)
G04868955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

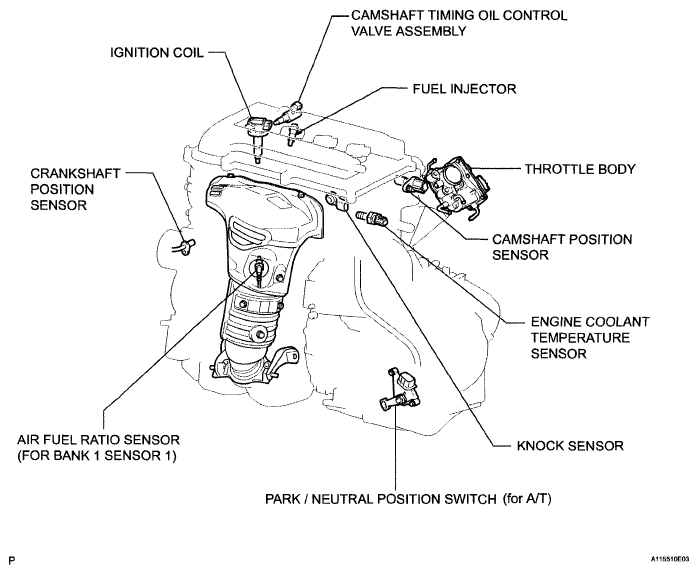

Fig 2: Identifying 2AZ-FE Engine Control System Parts Location - SFI System (2 Of 2)
G04868956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
