System Diagram

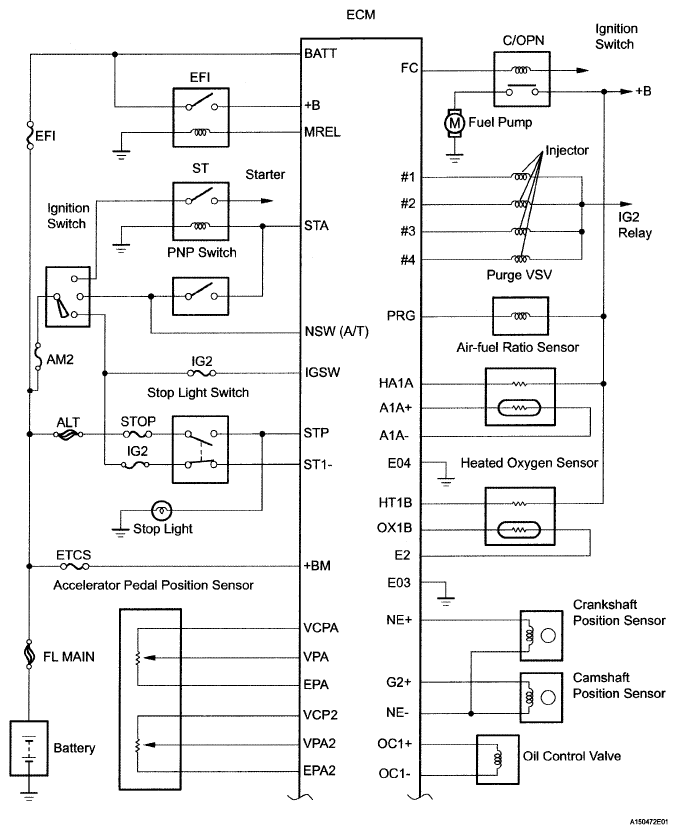

Fig 1: Identifying 2AZ-FE Engine Control System Diagram - SFI System (1 Of 2)
G04868957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

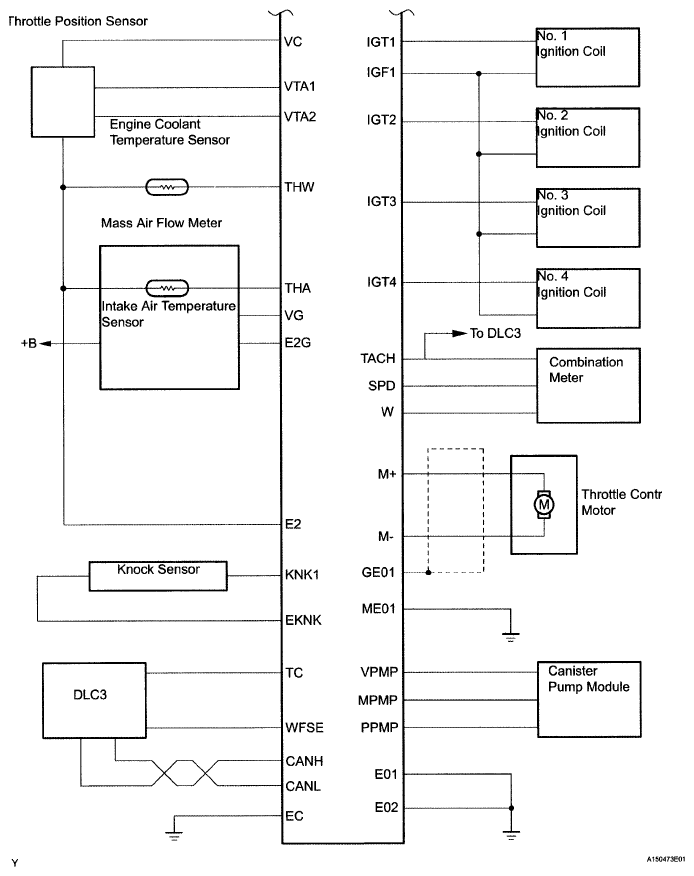

Fig 2: Identifying 2AZ-FE Engine Control System Diagram - SFI System (2 Of 2)
G04868958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
