VC Output Circuit: Wiring Diagram

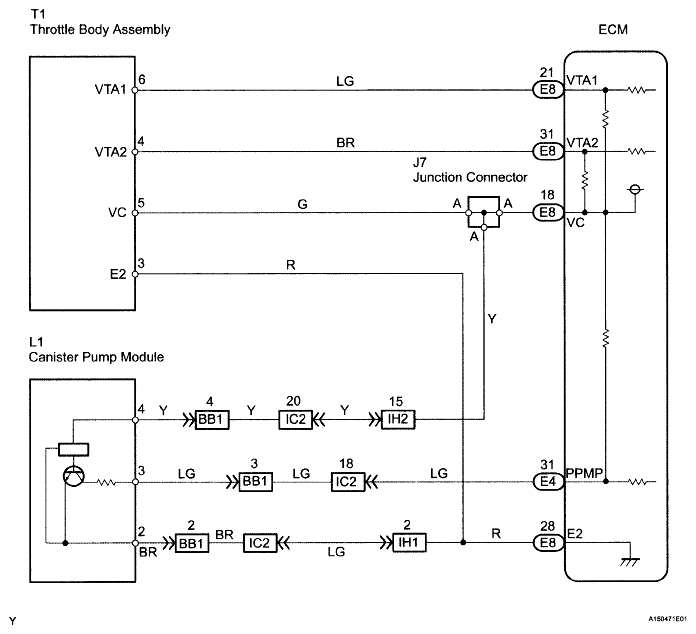

Fig 1: Identifying VC Output Wiring Diagram

G04869298

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
