Transmission Revolution Sensor: Components

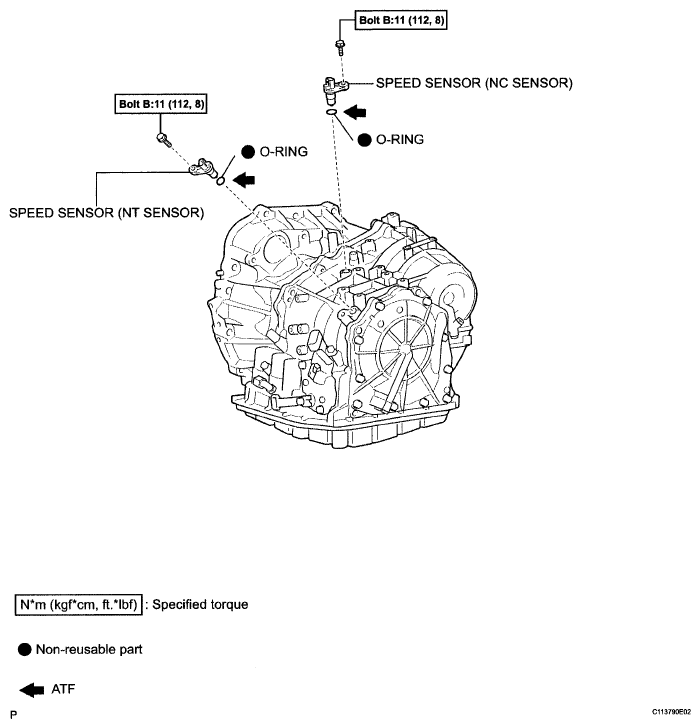

Fig 1: Identifying Transmission Revolution Sensor Components With Specifications

G04866125

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
