Cruise Control Switch Circuit: Wiring Diagram

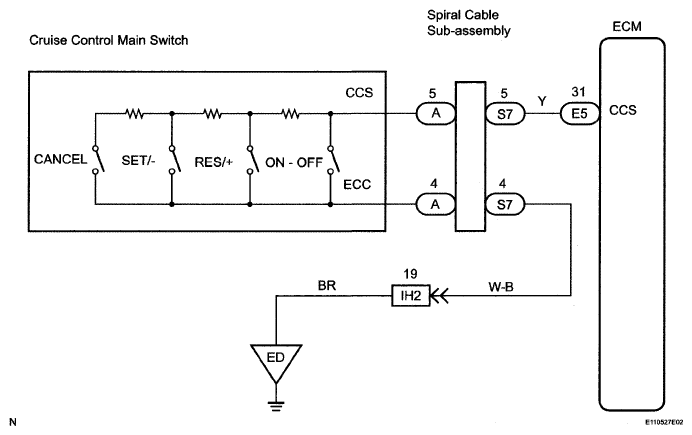

Fig 1: Identifying Cruise Control Switch Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
