Front Bumper: Components

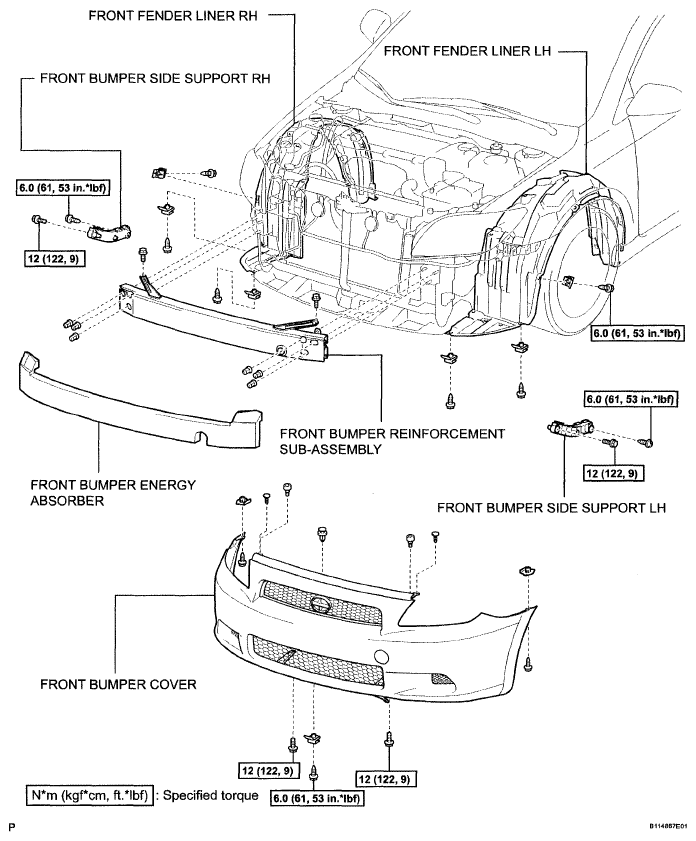

Fig 1: Identifying Front Bumper Components With Specifications (1 Of 2)
G04867712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

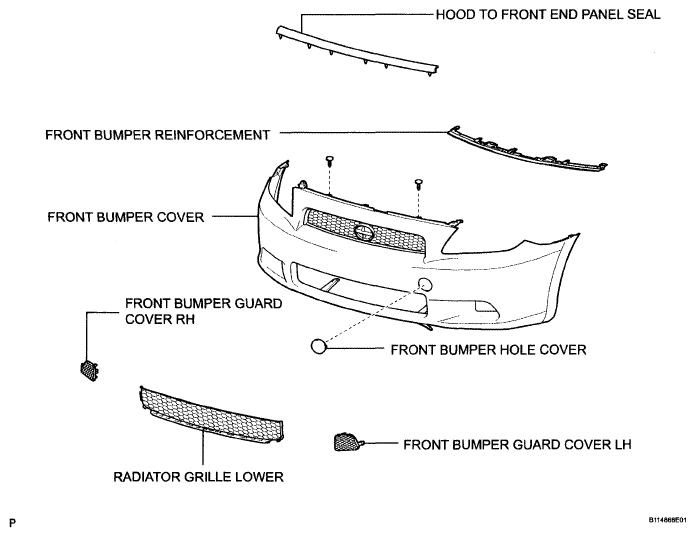

Fig 2: Identifying Front Bumper Components With Specifications (2 Of 2)
G04867713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
