Roof Headlining: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

  1. INSTALL SIDE RAIL SPACER FRONT LH (w/o Curtain Shield Airbag)
  2. INSTALL SIDE RAIL SPACER FRONT RH (w/o Curtain Shield Airbag)
  3. INSTALL SIDE RAIL SPACER REAR LH (w/o Curtain Shield Airbag)
  4. INSTALL SIDE RAIL SPACER REAR RH (w/o Curtain Shield Airbag)
  5. INSTALL ROOF HEADLINING ASSEMBLY
    1. Attach the wire harness to the headlining with tape as shown in the illustration.

      HINT:

      Be careful that dirt and foreign matter do not contaminate the tape's adhesive.

    2. Attach the roof wire harness with tape.
      NOTE: Attach the roof wire harness securely.
      Fig 1: Attaching Wire Harness To Headlining With Tape
      G04867785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 26 fasteners to install the headlining.
    4. Install the 2 clips.
      Fig 2: Identifying Roof Headlining Assembly Clips
      G04867786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL COAT HOOK
    1. Install the coat hook with the bolt and attach the claw.
      Fig 3: Identifying Coat Hook With Bolt
      G04867783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL ASSIST GRIP SUB-ASSEMBLY
    1. Attach the 4 claws to install the assist grip.
      Fig 4: Identifying Claws And Assist Grip
      G04867788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL ASSIST GRIP COVER
    1. Attach the 4 claws to install the 2 covers.
    Fig 5: Identifying Claws And Covers
    G04867789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL VISOR HOLDER LH
    1. Install the visor holder by turning it clockwise.
  10. INSTALL VISOR HOLDER RH
    1. Install the visor holder by turning it clockwise.
  11. INSTALL LH VISOR ASSEMBLY
    1. Install the visor with the 2 screws.
  12. INSTALL RH VISOR ASSEMBLY
    1. Install the visor with the 2 screws.
  13. INSTALL NO. 2 ROOM LIGHT ASSEMBLY
    1. Attach the light to the deck trim side panel LH.
  14. INSTALL NO. 1 ROOM LIGHT ASSEMBLY
    1. Connect the room light connector.
    2. Attach the 4 claws to install the light.
      Fig 6: Identifying Claws And Light
      G04867779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 4 claws to install the lens.
      4. Fig 7: Identifying Claws And Lens
      G04867791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL MAP LIGHT ASSEMBLY
    1. Connect the map light connector.
    2. Attach the 3 clips to install the light.
      Fig 8: Identifying Clips And Light
      G04867777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL FRONT PILLAR GARNISH LH
    1. w/o Curtain shield airbag:

      Attach the 2 clips to install the garnish.

      Fig 9: Identifying Clips And Garnish (LH)
      G04867793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Curtain shield airbag:
      1. Remove the protective cover.
        Fig 10: Identifying Protective Cover (LH)
        G04867794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Attach the 2 clips to install the garnish.

        HINT:

        Clip B cannot be reused.

  17. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 11: Identifying Clips And Garnish (RH)
    G04867795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER LH
    1. w/o Curtain shield airbag:

      Attach the 4 clips to install the garnish.

      Fig 12: Identifying Clips And Garnish (LH)
      G04867772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Curtain shield airbag:

      Attach the 4 clips to install the garnish.

      HINT:

      Clip B cannot be reused.

      3. Fig 13: Identifying Clips And Garnish (LH)
      G04867797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER RH

    HINT:

    Use the same procedures described for the LH side.

  20. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Attach the 4 claws and 4 clips to install the side panel.
    2. Install the rope hook with the bolt.
    3. Install the luggage hook.

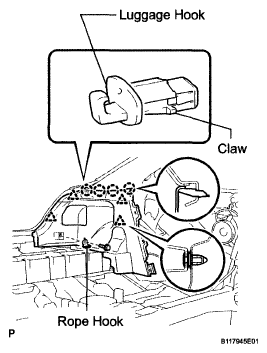

      4. Fig 14: Identifying Luggage Hook And Rope Hook
      G04867798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  22. INSTALL ROOF SIDE GARNISH INNER LOWER LH
    1. Attach the 5 clips to install the garnish.
    Fig 15: Identifying Clips And Garnish
    G04867799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL ROOF SIDE GARNISH INNER LOWER RH

    HINT:

    Use the same procedures described for the LH side.

  24. INSTALL CENTER PILLAR GARNISH LH
    1. w/o Curtain shield airbag:

      Attach the clip to install the garnish.

    2. w/ Curtain shield airbag:

      Attach the 2 claws and clip to install the garnish.

    3. Install the 2 screws.

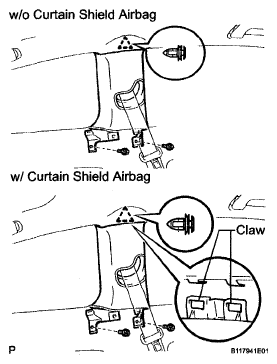

      4. Fig 16: Identifying Claws, Clip And Garnish
      G04867769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  26. INSTALL NO. 1 SIDE TRIM ASSEMBLY LH
    1. Attach the 3 claws and 8 clips to install the trim.
    2. Attach the clip labeled A.
    3. Install the hook.
    4. Install the 2 floor anchor bolts (front and rear seat belt).
      5. Fig 17: Identifying Clip Labeled A And Hook
      G04867801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL NO. 1 SIDE TRIM ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  28. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  29. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  30. INSTALL REAR SEATBACK ASSEMBLY LH (See  INSTALLATION  )
  31. INSTALL REAR SEATBACK ASSEMBLY RH (See  INSTALLATION  )
  32. INSTALL REAR SEAT CUSHION ASSEMBLY (See  INSTALLATION  )
  33. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Attach the 2 clips to install the trim.
    2. Install the cap nut.
      3. Fig 18: Identifying Cap Nut And Clips
      G04867802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  35. INSTALL FRONT DOOR SCUFF PLATE LH
    1. Attach the 10 claws to install the scuff plate.
      2. Fig 19: Identifying Claws And Scuff Plate
      G04867766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

  37. INSTALL FRONT DOOR SCUFF PLATE OUTSIDE LH
    1. Attach the 4 clips to install the scuff plate.
      2. Fig 20: Identifying Clips And Scuff Plate
      G04867765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL FRONT DOOR SCUFF PLATE OUTSIDE RH

    HINT:

    Use the same procedures described for the LH side.

  39. INSTALL REAR NO. 1 FLOOR BOARD
    1. Attach the clip to install the board.
      Fig 21: Identifying Clip And Board
      G04867764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSTALL NO. 1 DECK BOARD
    1. Attach the 4 clips to install the deck board.
    2. Install the rope hook with the bolt.
      3. Fig 22: Identifying Clips And Deck Board
      G04867763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL DECK FLOOR BOX REAR
  42. INSTALL DECK FLOOR BOX LH
    1. Install the box with the 2 clips.
  43. INSTALL DECK FLOOR BOX RH
    1. Install the box with the 2 clips.
  44. INSTALL SPARE WHEEL COVER ASSEMBLY
  45. INSTALL BACK DOOR WEATHERSTRIP
  46. INSTALL BACK DOOR SCUFF PLATE
    1. Attach the 4 clips to install the scuff plate.
      2. Fig 23: Identifying Clips And Scuff Plate
      G04867807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. INSTALL DECK BOARD SUB-ASSEMBLY
  48. INSTALL TONNEAU COVER ASSEMBLY
