Charging (2AZ-FE): Generator: Components

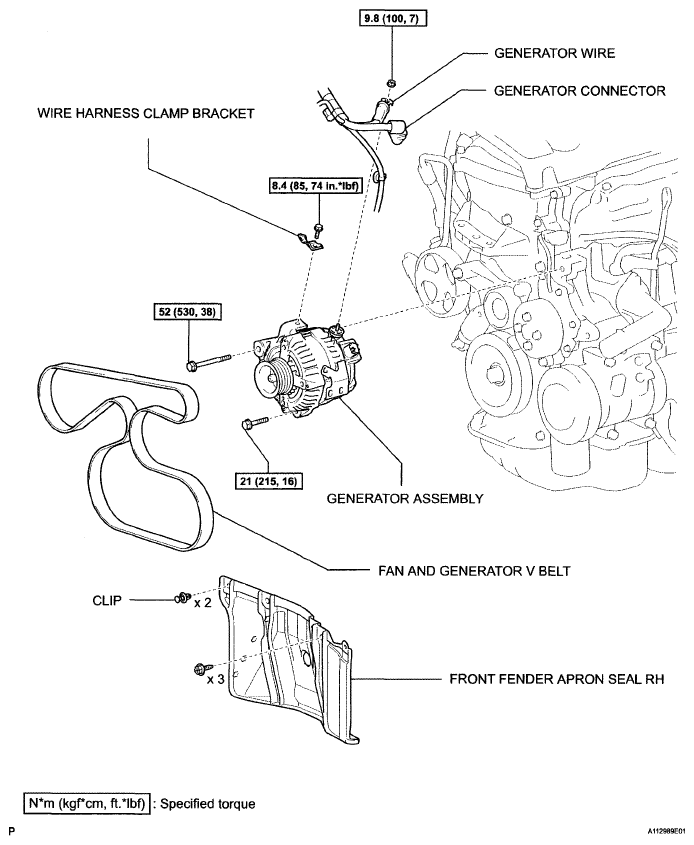

Fig 1: Identifying Generator Components With Specifications (1 Of 2)
G04866001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

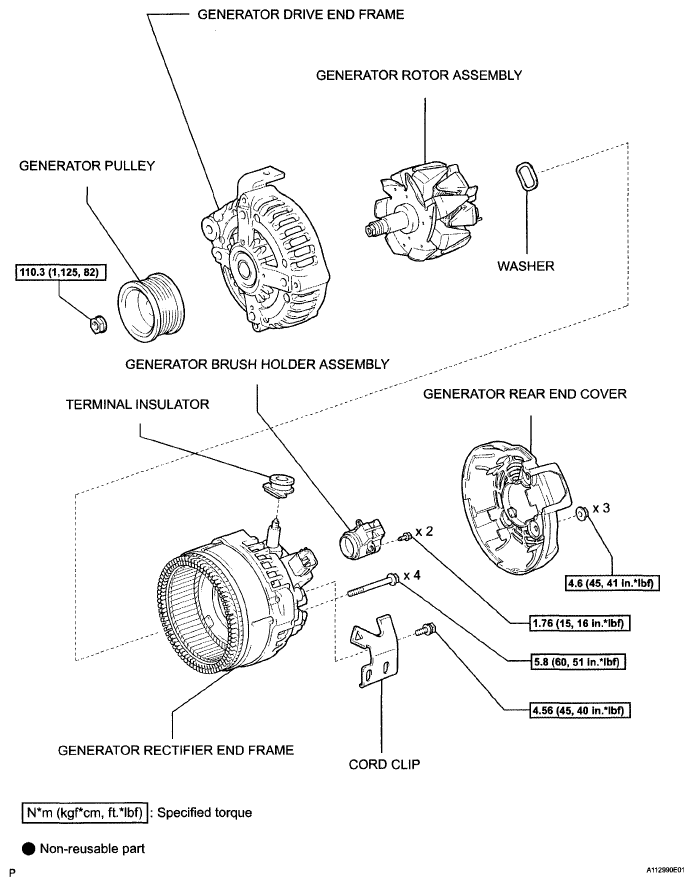

Fig 2: Identifying Generator Components With Specifications (2 Of 2)
G04866002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
