Vacuum Switching Valve: Components

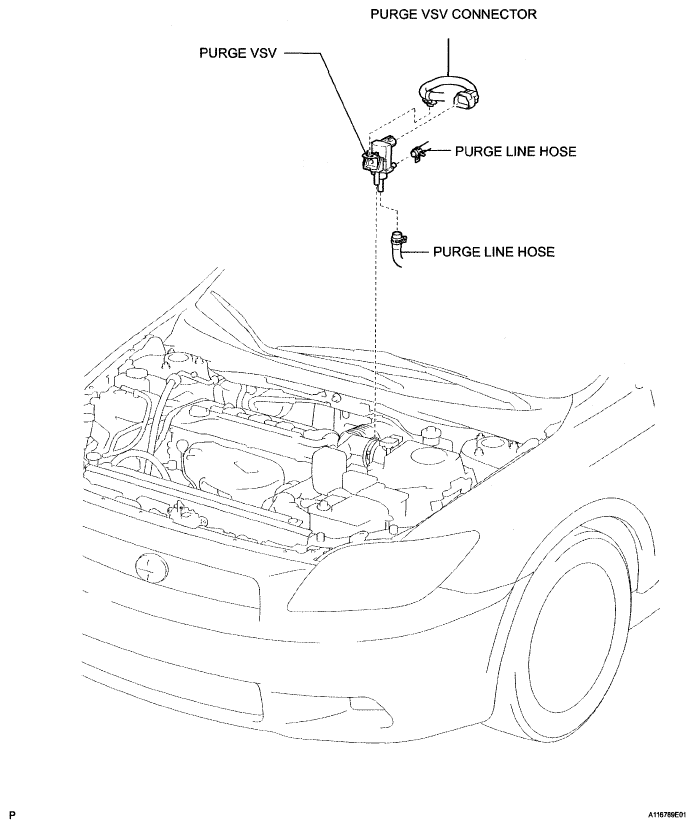

Fig 1: Identifying Vacuum Switching Valve Components Locating
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
