Home › Scion › 2007 › tC Base, Standard › Repair and Diagnosis › Transmission › Manual Trans › E350 Manual Transaxle › Differential Case › Components

Differential Case: Components

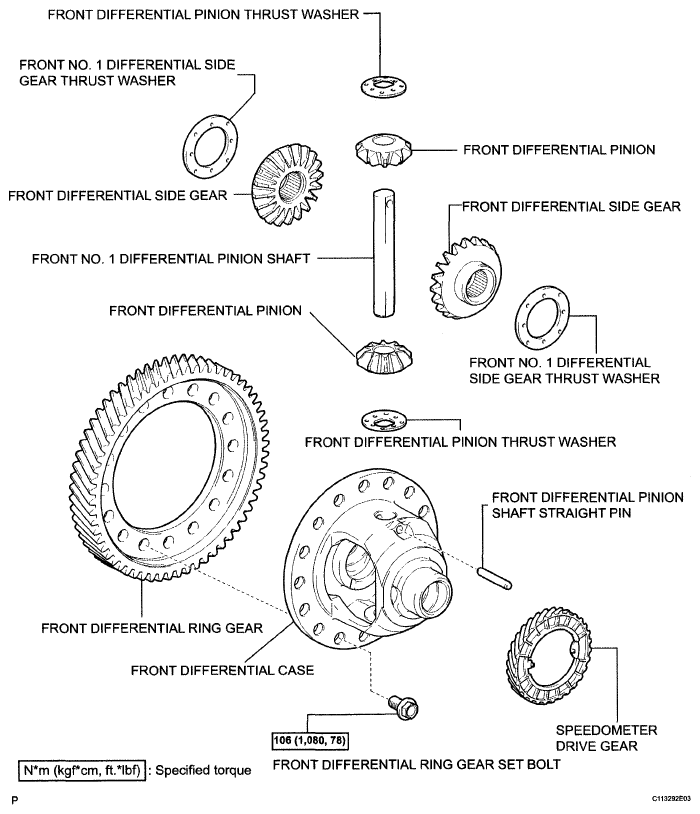

Fig 1: Identifying Differential Case Components With Specifications
G04868241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
