Floor Shift Lever Assembly: Components

Fig 1: Identifying Floor Shift Lever Assembly Components Locations With Specifications (1 Of 2)
G04867900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

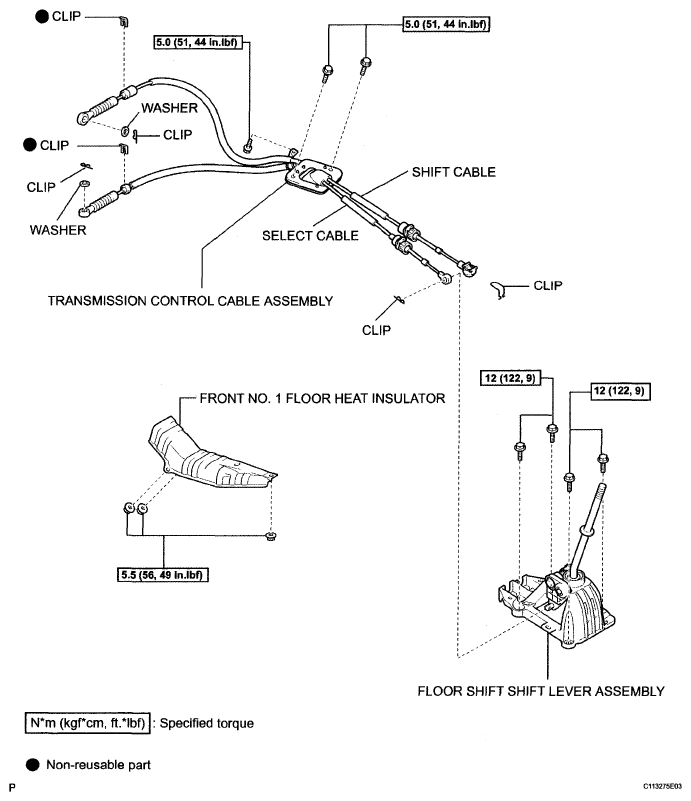

Fig 2: Identifying Floor Shift Lever Assembly Components Locations With Specifications (2 Of 2)
G04867901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
