OEM System Circuits: Headlight: Notes

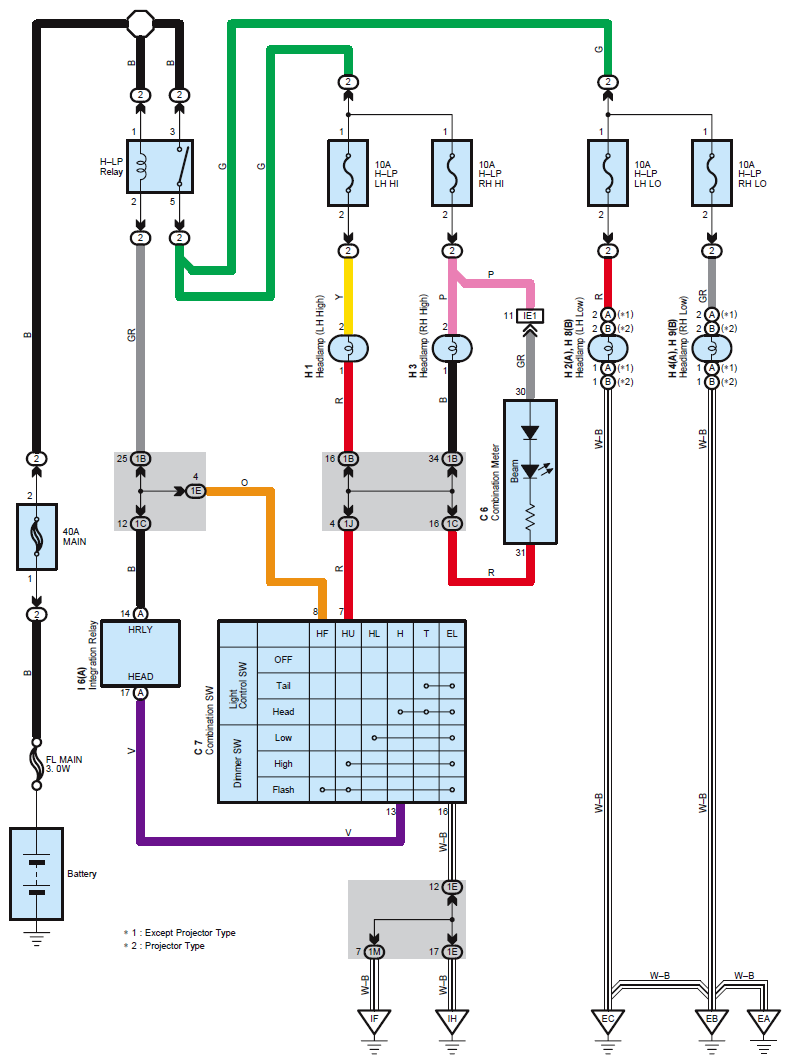

Fig 1: Headlight - Circuit Diagram
G07603166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
