Power Window with Jam Protection: Notes

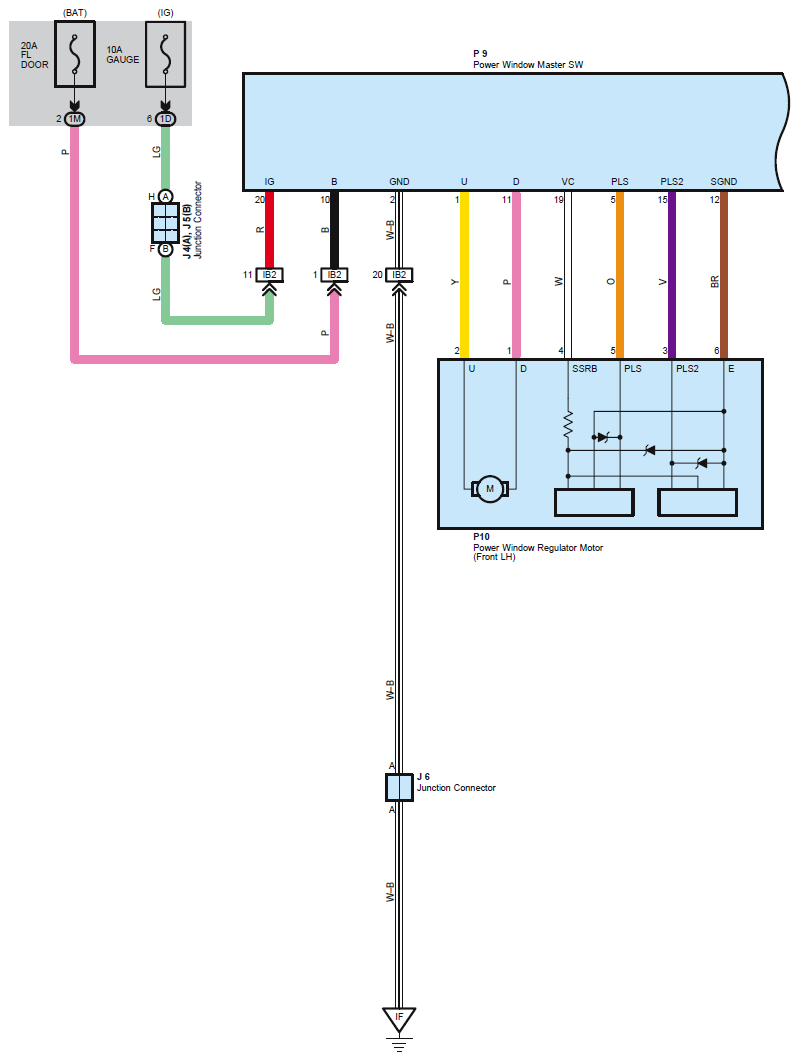

Fig 1: Power Window With Jam Protection - Circuit Diagram (1 Of 3)
G07603179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

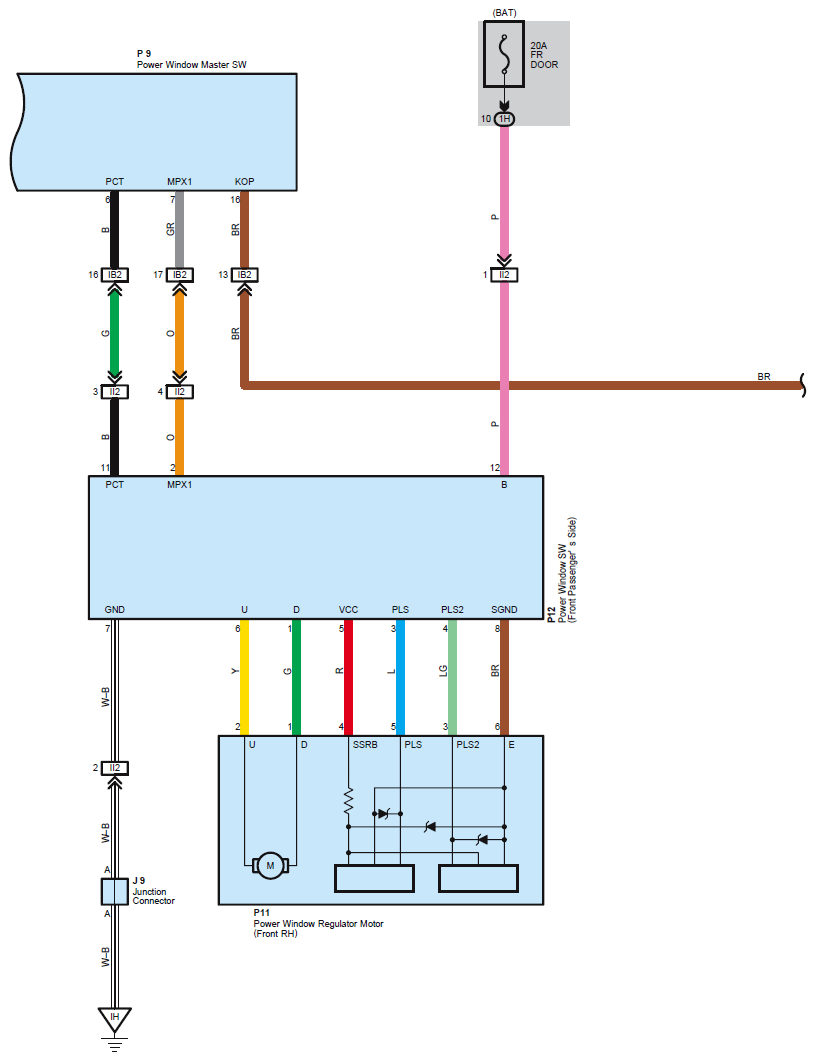

Fig 2: Power Window With Jam Protection - Circuit Diagram (2 Of 3)
G07603180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

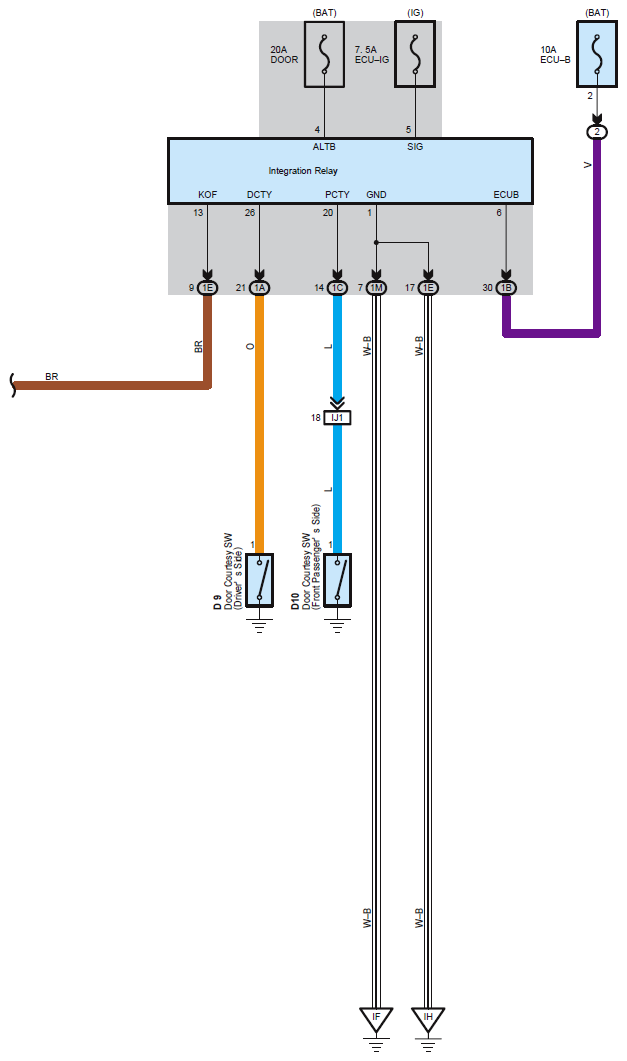

Fig 3: Power Window With Jam Protection - Circuit Diagram (3 Of 3)
G07603181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
