Scion
›
2008
›
tC Base, Automatic
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Radiator Fan and Condenser Fan
›
Notes
Radiator Fan and Condenser Fan: Notes

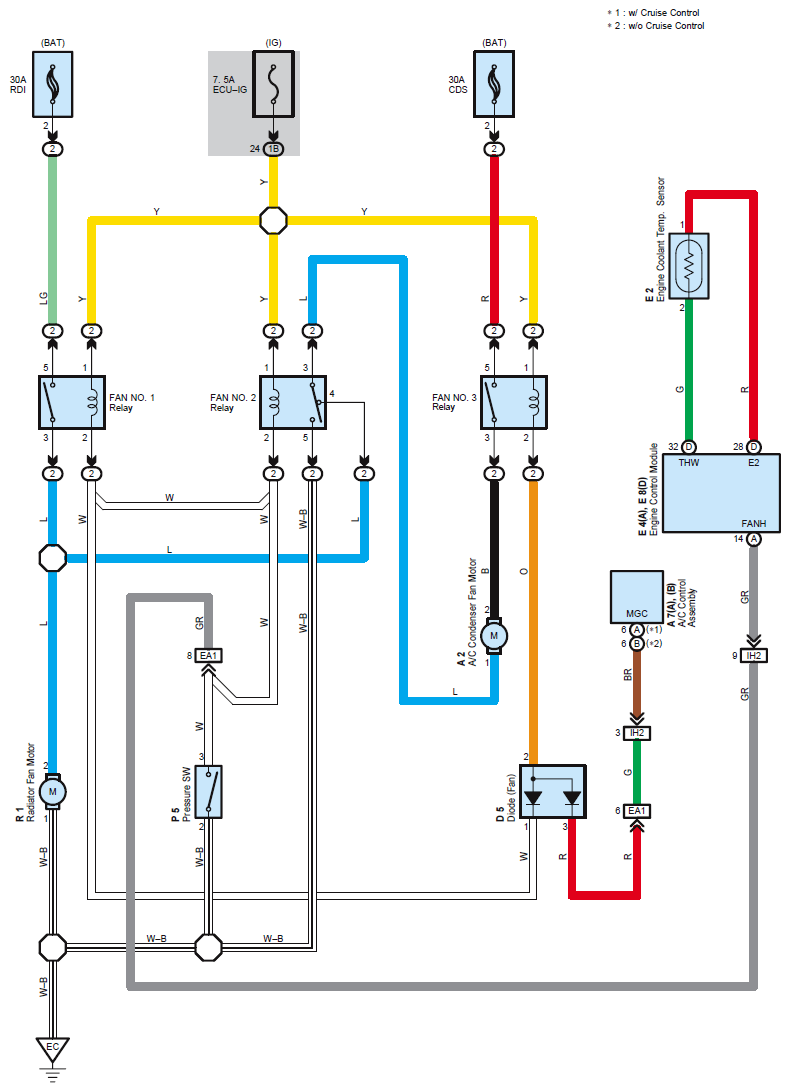

Fig 1: Radiator Fan And Condenser Fan - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
