Seat Belt Warning: Notes

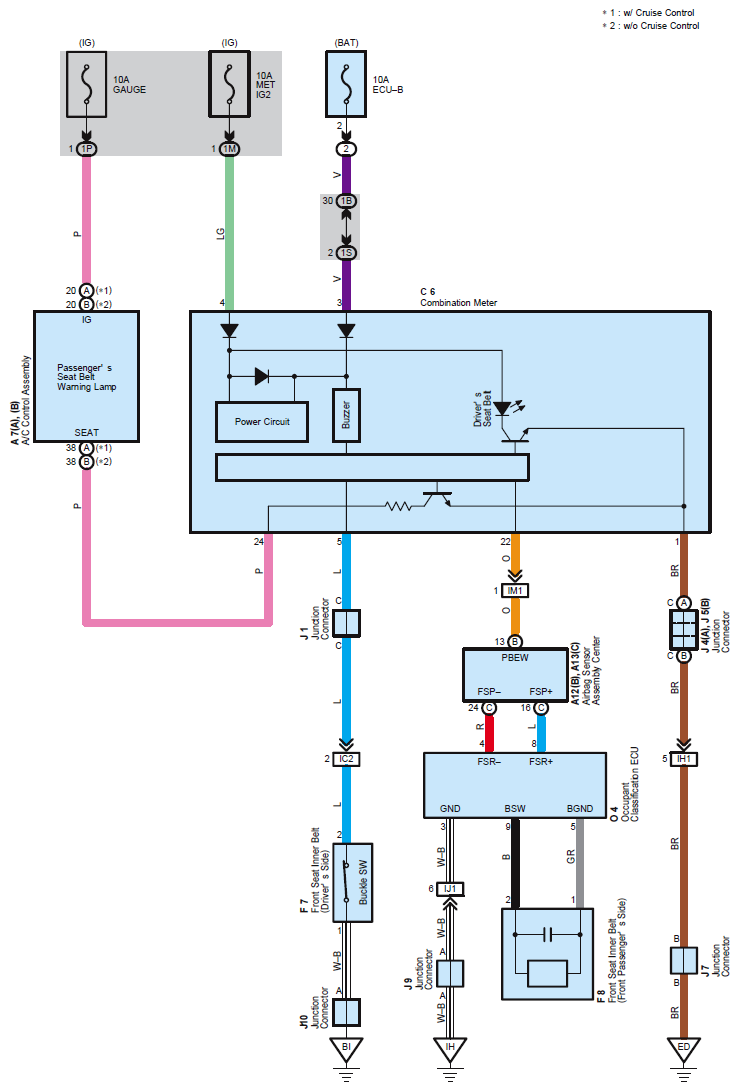

Fig 1: Seat Belt Warning - Circuit Diagram
G07603217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
