Upper Instrument Panel: Installation

INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY
1. Detach the 13 claws to install the upper instrument panel.
2. Install the 5 screws and 2 bolts.
  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf) for Bolt

  Fig 1: Identifying No. 1 Heater To Register Duct Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

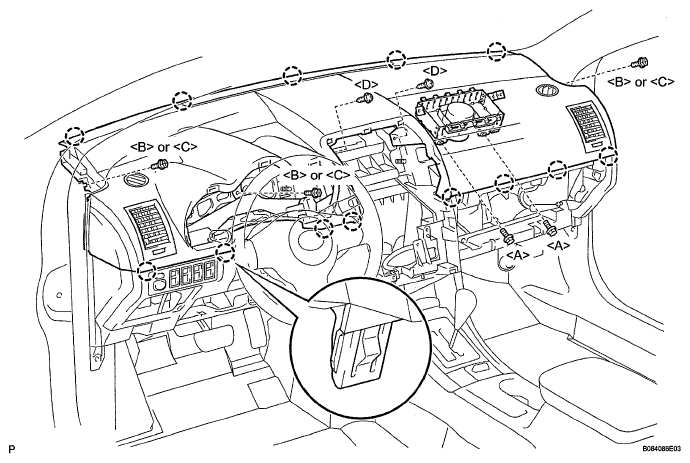

  Fig 2: Identifying Upper Instrument Panel Sub-Assembly With Claws, Screws And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PASSENGER AIRBAG CONNECTOR
INSTALL FRONT PILLAR GARNISH LH (w/o Curtain Shield Airbag) ( INSTALLATION )
INSTALL FRONT PILLAR GARNISH LH (w/ Curtain Shield Airbag) ( INSTALLATION )
INSTALL FRONT PILLAR GARNISH RH (w/o Curtain Shield Airbag)
HINT:

Use the same procedures for the RH side and LH side.
INSTALL FRONT PILLAR GARNISH RH (w/ Curtain Shield Airbag)
HINT:

Use the same procedures for the RH side and LH side.
INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
1. Attach the claw to install the glove compartment door

  Fig 3: Identifying Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
1. Attach the 4 claws to install the glove compartment door assembly.
2. Slightly press in on the upper sides of the glove compartment door assembly to engage the 2 stoppers.

  Fig 4: Identifying Glove Compartment Door Assembly With Stoppers And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the glove compartment door stopper to the glove compartment door assembly.
INSTALL NO. 1 RADIO BRACKET
1. Install the No. 1 radio bracket with the nut and screw.
INSTALL NO. 2 RADIO BRACKET
1. Install the No. 2 radio bracket with the nut and screw.

  Fig 5: Identifying No. 1 Radio Bracket With Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEATER CONTROL AND ACCESSORY ASSEMBLY
INSTALL UPPER CONSOLE PANEL
1. Install the clamp and console panel.
2. Connect the connector.

  Fig 6: Identifying Upper Console Panel With Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 6 claws to install the console panel.

  Fig 7: Identifying Claws On Console Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (Manual Transaxle)
1. Turn the shift lever knob clockwise and install the shift lever knob.
INSTALL COMBINATION METER ASSEMBLY
1. Connect the connector.
2. Attach the 2 claws to install the combination meter.
3. Install the screw.

  Fig 8: Identifying Shift Lever Knob Sub-Assembly (Manual Transaxle)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL METER HOOD SUB-ASSEMBLY
1. Attach the 9 claws to install the meter hood.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization ( INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

  Fig 9: Identifying Claws On Meter Hood
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK SRS WARNING LIGHT
1. Check the SRS warning light ( DIAGNOSIS SYSTEM ).
