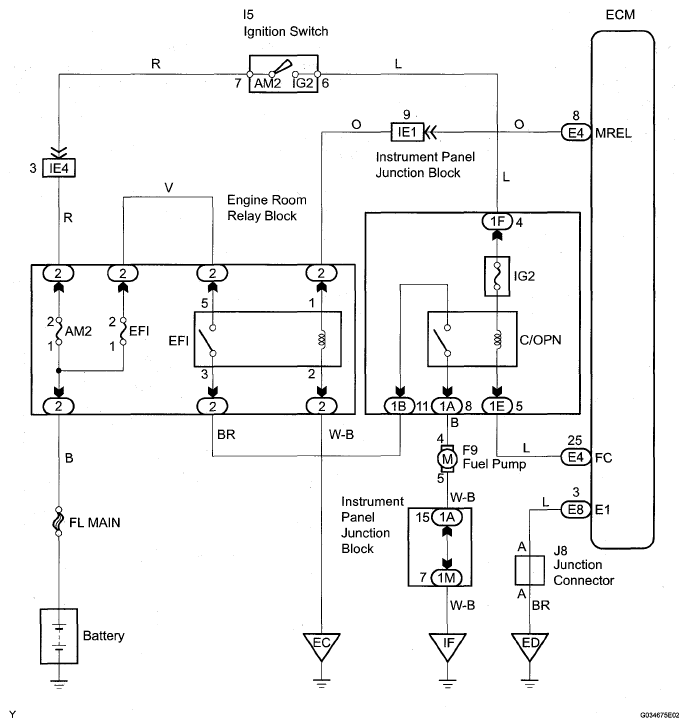

Fuel Pump Control Circuit: Wiring Diagram
Fig 1: Engine Room Relay Block - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
