System Diagram

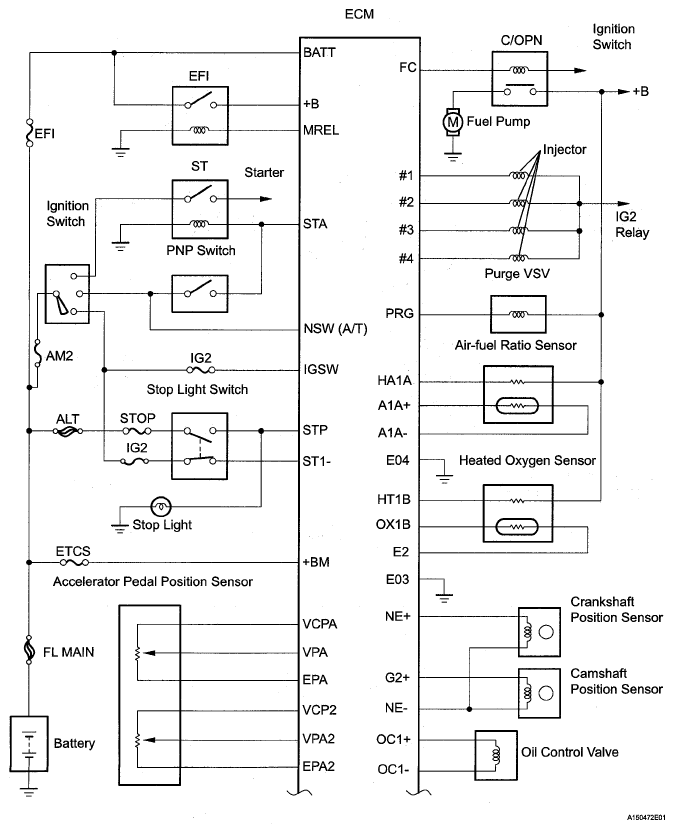

Fig 1: Engine Control System - System Diagram (1 Of 2)
G05538904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

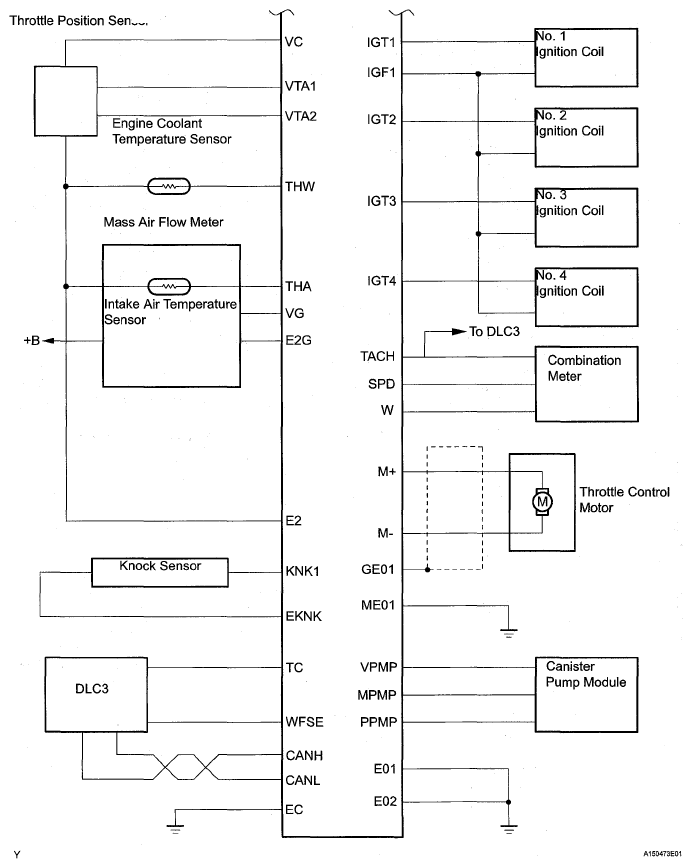

Fig 2: Engine Control System - System Diagram (2 Of 2)
G05538905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
