Standard Bolt
›
How To Determine Bolt Strength
How To Determine Bolt Strength
Bolt Type

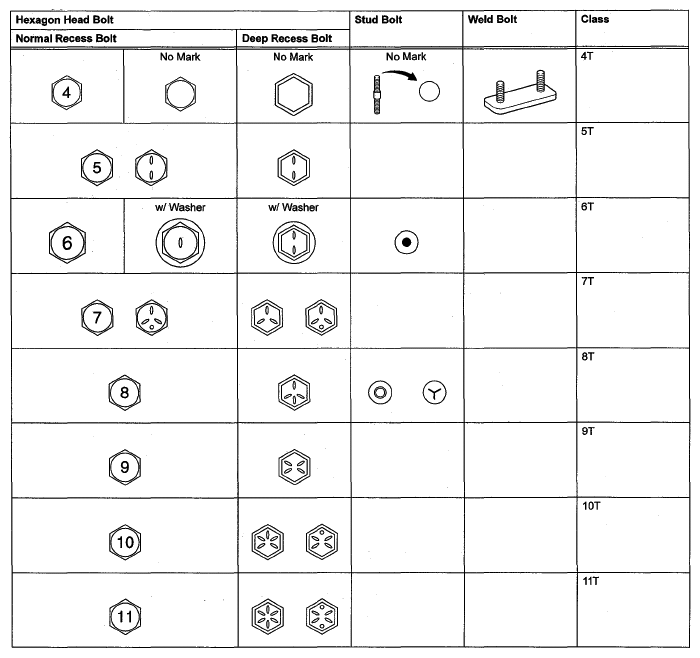

Fig 1: Bolts Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
