Automatic Transaxle Assembly: Components

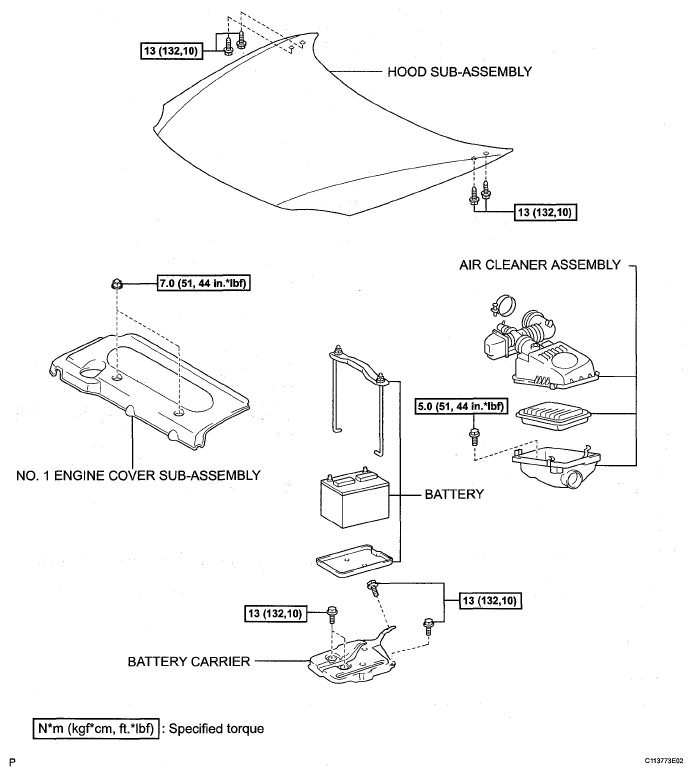

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications (1 Of 4)
G05539461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

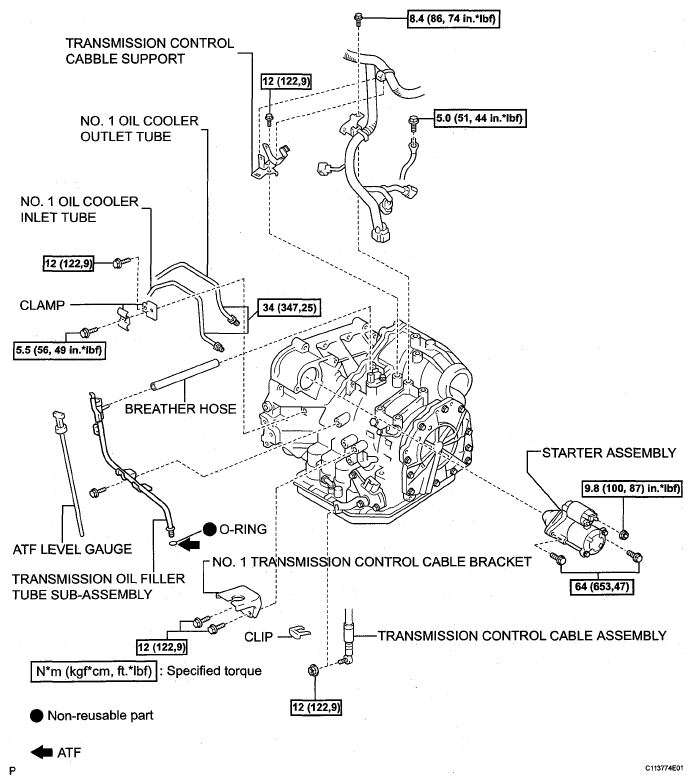

Fig 2: Automatic Transaxle Assembly Replacement Components With Torque Specifications (2 Of 4)
G05539462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

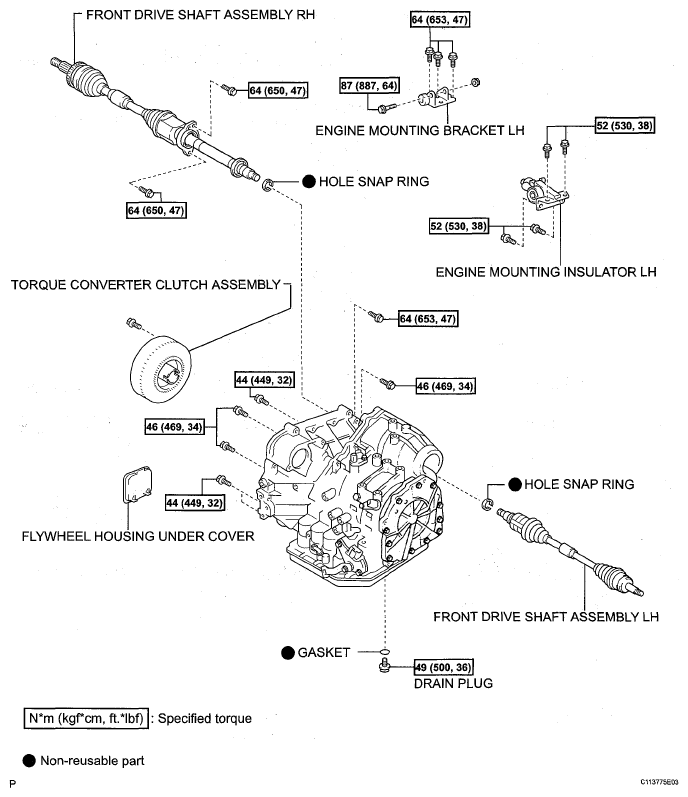

Fig 3: Automatic Transaxle Assembly Replacement Components With Torque Specifications (3 Of 4)
G05539463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

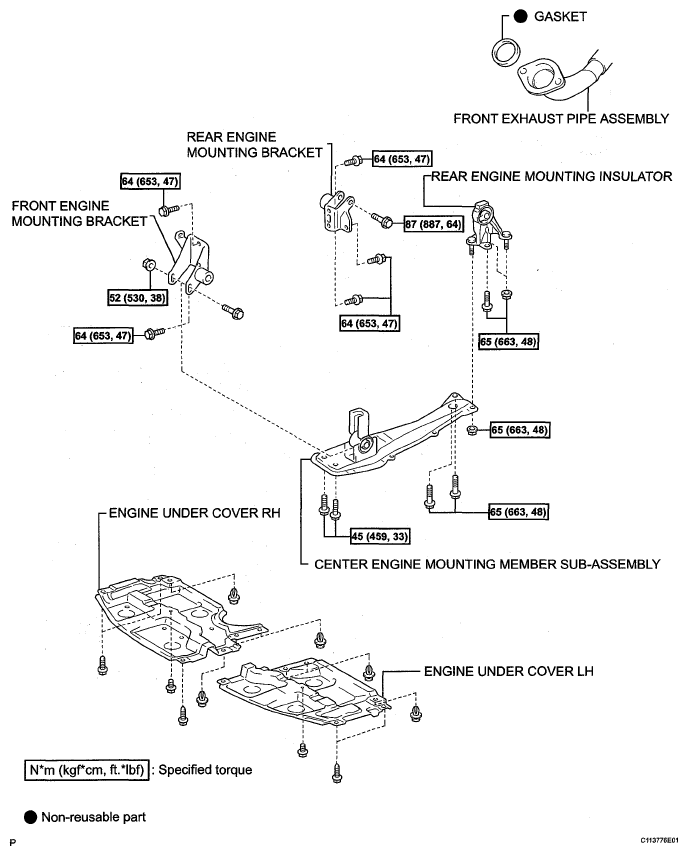

Fig 4: Automatic Transaxle Assembly Replacement Components With Torque Specifications (4 Of 4)
G05539464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
