System Diagram

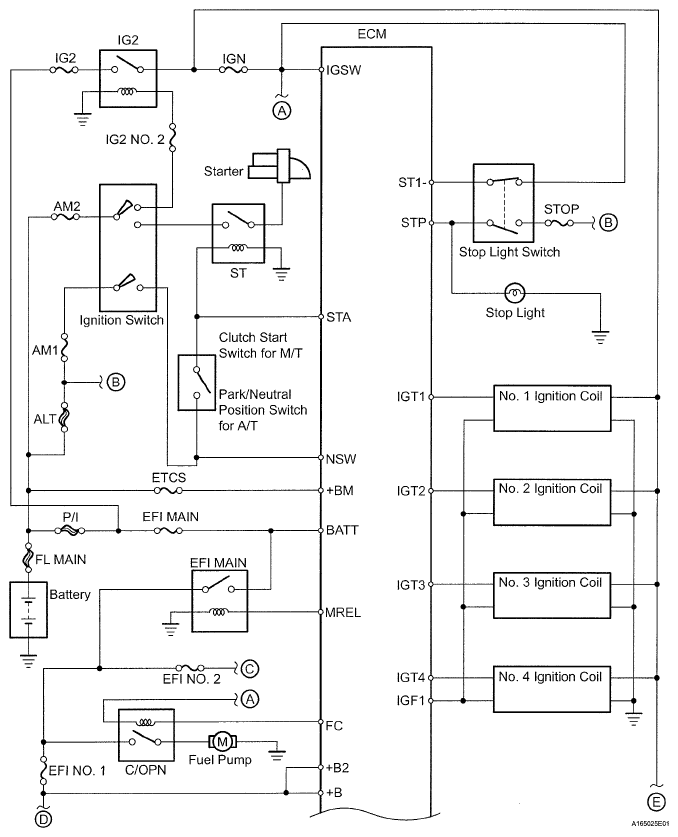

Fig 1: Engine Control System Diagram (1 Of 3)
G05386582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

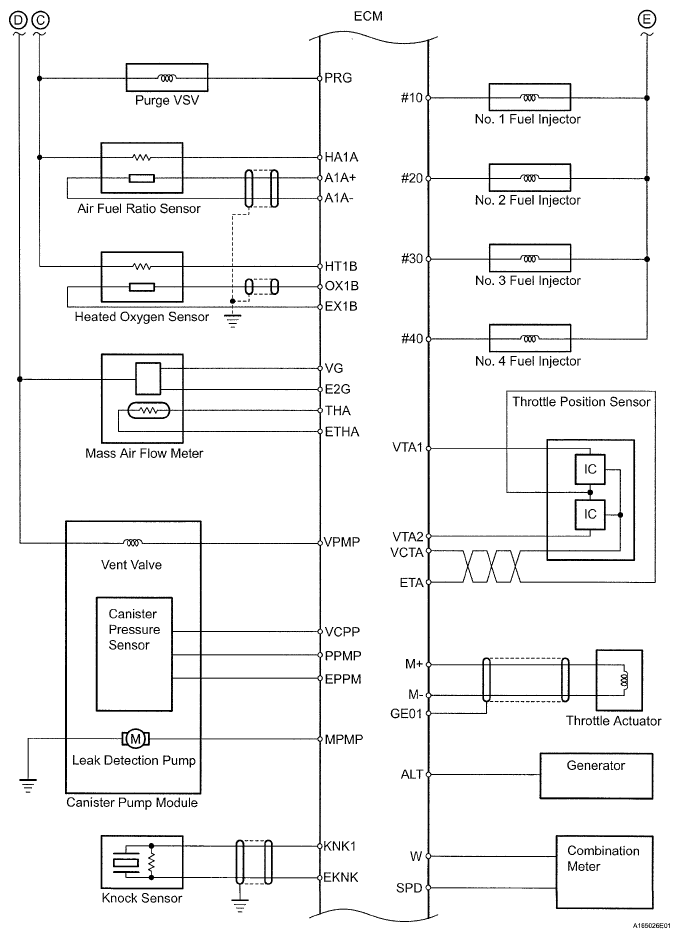

Fig 2: Engine Control System Diagram (2 Of 3)
G05386583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

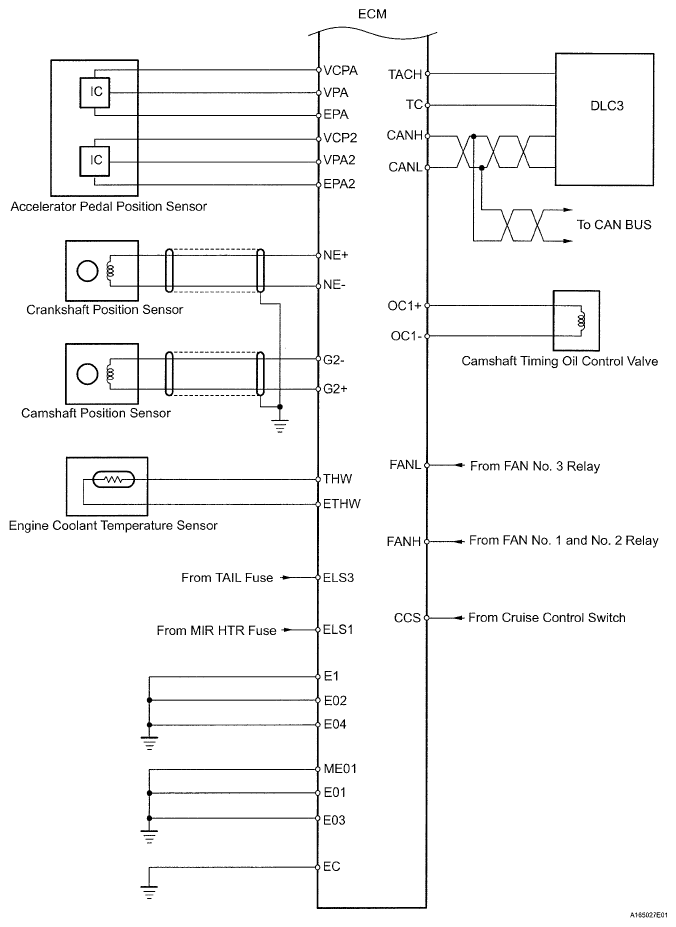

Fig 3: Engine Control System Diagram (3 Of 3)
G05386584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
